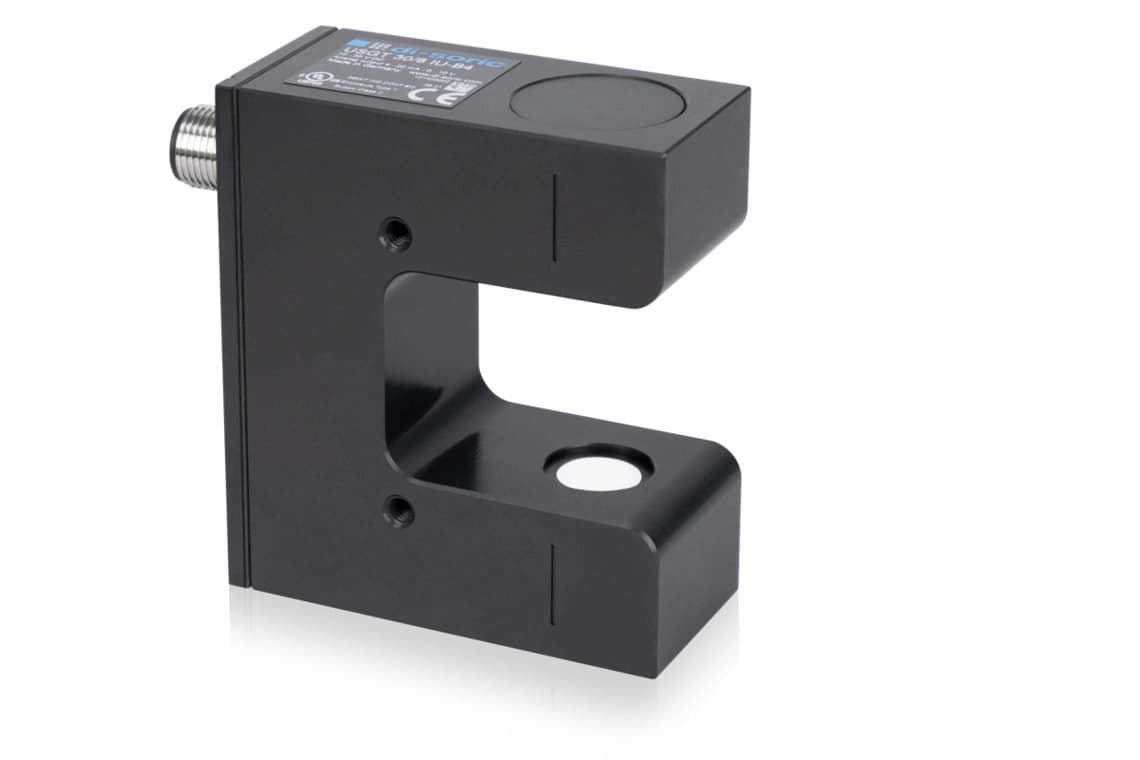

USGT 30/8 IU-B4 USGT Ultrasonic sensors

Di-soric Ultrasonic sensors Industrial Automation - USGT 30/8 IU-B4 USGT Ultrasonic sensors

USGT 30/8 IU-B4 USGT Ultrasonic sensors

Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about USGT 30/8 IU-B4 USGT Ultrasonic sensors

Description

Collapse all
Service voltage12 … 30 V DC
No-load current (max.)40 mA (24 V DC)
Ripple10 %
Insulation voltage endurance500 V
Fork opening30 mm
Housing materialAluminum (Black, Anodized)
Protection classIII, operation on protective low voltage
ApprovalsUL
Operating principleUltrasonic through-beam sensor
Evaluationanalog
DesignFork
Analog output0 … 10 V, 4 … 20 mA
Resolution0.1 mm
Measuring range8 mm (typ.)
Reproducibility± 0.1 mm
Sensitivity adjustmentKeypad
Measuring frequency500 Hz
Ambient temperature during operation0 … +60 °C
Protection typeIP 67
ConnectionConnector, M12, 4-pin
Connection cableVKHM … /4
