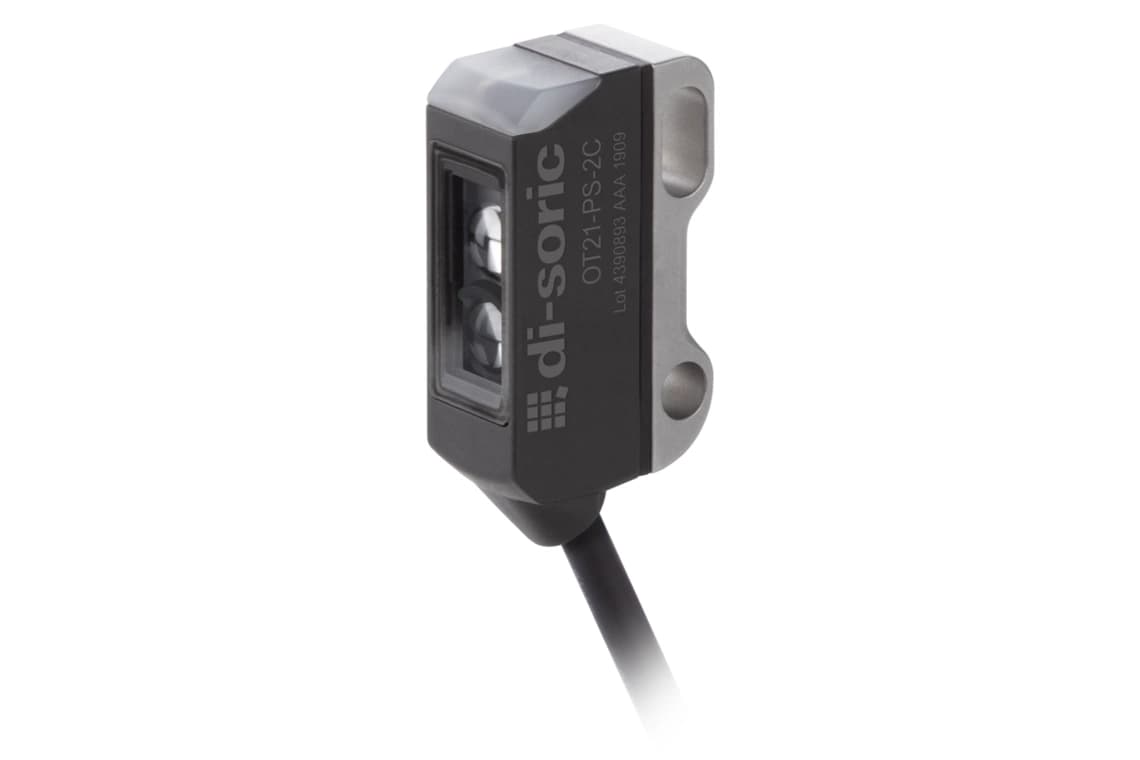

OT21-PS-2C O-21 Miniature Optical sensors

Di-soric Optical sensors Industrial Automation - OT21-PS-2C O-21 Miniature Optical sensors
Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about OT21-PS-2C O-21 Miniature Optical sensors

Description

OT21-PS-2C
Article Number: 212981

The very small and efficient light barriers and sensors in the O-21 miniature series with IO-Link can be easily integrated. The retroreflective sensors with background suppression are suited for detecting small and flat objects. The retroreflective sensors feature a high functional reserve.
Miniature design
Mounting element made of metal
High switching frequency
IO-Link
Diagnostic function reserve

Collapse all
Service voltage10 … 30 V DC
No-load current (max.)20 mA
Inverse polarity protectionYes
Short-circuit protectionYes
Insulation voltage endurance500 V
Housing dimensions28.1 x 14.4 x 8.1 mm
Housing length14.4 mm
Housing height28.1 mm
Housing width8.1 mm
Housing materialStainless steel / Plastic
Material of cablePVC
MaterialPlastic (Window / optics)
Weight37 g
Protection classIII, operation on protective low voltage
ApprovalsUL
Operating principleRetroreflective diffuse sensor
Evaluationdigital
DesignCuboid design
Switching outputpnp, 100 mA, NO/NC, configurable
Voltage drop (max.)2.5 V
InterfaceIO-Link (V1.1, COM2 38.4 kBd, Smart Sensor Profile)
Light sourceLED
ColorRed
Wavelength633 nm
ModulationClocked
Light spot sizeØ 18 mm (at distance of 180 mm)
Range0 … 180 mm (configurable)
Scanning rangeconfigurable
Standardized measuring plate200 x 200 mm (white)
Sensitivity adjustmentIO-Link
DisplayLED green - Status, yellow - Switching output
Switching frequency1000 Hz
Ambient temperature during operation-25 … +60 °C
Protection typeIP 65 / IP 67
ConnectionCable 2.0 m, 3-pin
