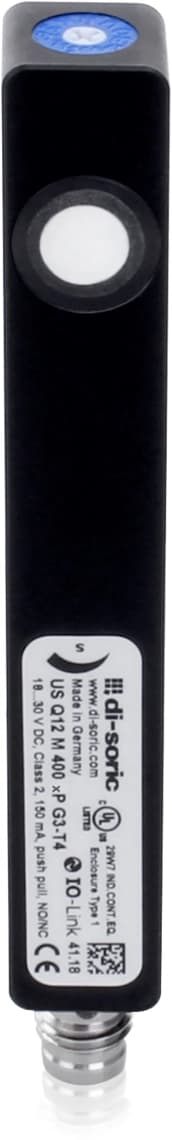

Ultrasonic sensor US-Q12

US Q12 M 400 XP G3-T4
Article Number: 212930

The US-Q12 is the compact class in cubic form and with a small mounting depth. Equipped with an IO-Link interface, the sensor can be operated to switch or to measure. Its area of application is short distances, and the sensitivity is adjusted simply via auto-teach, potentiometer or IO-Link.
IO-Link
Fill level detection in step feeder
Potentiometer for adjustment
Low installation depth
Very narrow detection beam / small blind zone
Switching function NO/NC switchable
Resistant to dirt
Small design
Robust metal housing
Protection class IP 67

Collapse all
Service voltage18 … 30 V DC
No-load current (max.)40 mA (24 V DC)
Inverse polarity protectionYes
Short-circuit protectionYes
Insulation voltage endurance500 V
Housing dimensions12 x 12 x 82 mm
Housing length82 mm
Housing height12 mm
Housing width12 mm
Transmission exitradial
Assembly distance (sensor to sensor)250 mm
Housing materialAluminum (Black, Anodized)
MaterialEpoxy resin, PUR (Transducer surface)
Weight30 g
Protection classIII, operation on protective low voltage
ApprovalsUL
Operating principleUltrasonic sensor, Ultrasonic barrier, Fill level step feeder
Evaluationdigital
DesignCuboid design
CharacteristicsIO-Link
Parallel operation possibleNo
Switching outputPush-pull, 150 mA, NO/NC, switchable
Max. switch current150 mA
Voltage drop (max.)2 V
InterfaceIO-Link (V1.1, COM2 38.4 kBd, Smart Sensor Profile)
Nominal switching distance (Sn)400 mm
Range40 … 400 mm
Adjustment range40 … 400 mm (Potentiometer)
Resolution1.0 mm
Standardized measuring plate100 x 100 mm
Switching hysteresis (max.)2 … 20 mm (Adjustable by IO-Link)
Reproducibility< 0.5 mm
Sensitivity adjustmentPotentiometer
DisplayLED green - Status, 1x yellow - Switching output
Ultrasonic frequency300 kHz
Switching frequency< 10 Hz
Readiness delay (max.)300 ms
Shock/vibration load30 g, 11 ms / 10 … 55 Hz, 1.0 mm
Ambient temperature during operation-25 … +70 °C
Temperature drift0.2 %/K (uncompensated)
Protection typeIP 67
ConnectionConnector, M8, 4-pin
Connection cableTK … /4
