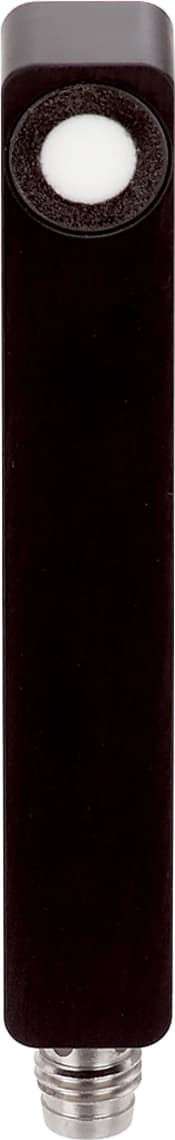

US Q12 M 400 R G3-T4 US-Q12 Ultrasonic sensors

Di-soric Ultrasonic sensors Industrial Automation - US Q12 M 400 R G3-T4 US-Q12 Ultrasonic sensors

US Q12 M 400 R G3-T4 US-Q12 Ultrasonic sensors

Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about US Q12 M 400 R G3-T4 US-Q12 Ultrasonic sensors

Description

Collapse all
Service voltage18 … 30 V DC
No-load current (max.)40 mA (24 V DC)
Inverse polarity protectionYes
Short-circuit protectionYes
Insulation voltage endurance500 V
Housing dimensions12 x 12 x 75 mm
Housing length75 mm
Housing height12 mm
Housing width12 mm
Transmission exitradial
Assembly distance (sensor to sensor)250 mm
Housing materialAluminum (Black, Anodized)
MaterialEpoxy resin, PUR (Transducer surface)
Weight30 g
Protection classIII, operation on protective low voltage
ApprovalsUL
Operating principleUltrasonic sensor, Ultrasonic barrier, Ultrasonic reflective sensor
Evaluationdigital
DesignCuboid design
CharacteristicsIO-Link
Parallel operation possibleNo
FunctionsTeach reflex (Pin 2), Out 1, IO-Link (Pin 4)
Switching outputPush-pull, 150 mA, NO/NC, switchable
Max. switch current150 mA
Voltage drop (max.)2 V
InterfaceIO-Link (V1.1, COM2 38.4 kBd, Smart Sensor Profile)
Nominal switching distance (Sn)400 mm
Range40 … 400 mm
Adjustment range40 … 400 mm (Teach in)
Resolution1.0 mm
Standardized measuring plate100 x 100 mm
Switching hysteresis (max.)2 … 20 mm (Adjustable by IO-Link)
Reproducibility< 0.5 mm
Sensitivity adjustmentRemote teach
DisplayLED green - Status, 1x yellow - Switching output
Ultrasonic frequency300 kHz
Switching frequency< 10 Hz
Readiness delay (max.)300 ms
Shock/vibration load30 g, 11 ms / 10 … 55 Hz, 1.0 mm
Ambient temperature during operation-25 … +70 °C
Temperature drift0.2 %/K (uncompensated)
Temperature drift< 1 %/Sn (compensated)
Protection typeIP 67
ConnectionConnector, M8, 4-pin
Connection cableTK … /4
