Get more information about US Q12 M 400 IU-T4 US-Q12 Ultrasonic sensors

Description

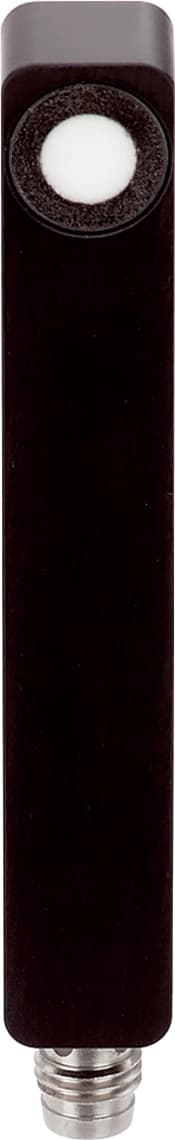

Ultrasonic sensor US-Q12

US Q12 M 400 IU-T4
Article Number: 210968

The US-Q12 is the compact class in cubic form and with a small mounting depth. Equipped with an IO-Link interface, the sensor can be operated to switch or to measure. Its area of application is short distances, and the sensitivity is adjusted simply via auto-teach, potentiometer or IO-Link.
IO-Link
Can be configured as an ultrasonic sensor, barrier or for analog distance measurement
3 different teach modes
Low installation depth
Analog output 4 to 20 mA / 0 to 10 V, depending on load
Very narrow detection beam / small blind zone
Resistant to dirt
Small design
Robust metal housing
Protection class IP 67

Collapse all
Service voltage18 … 30 V DC
No-load current (max.)40 mA (24 V DC)
Inverse polarity protectionyes, except for the analog output PIN2
Short-circuit protectionYes
Insulation voltage endurance500 V
Housing dimensions12 x 12 x 75 mm
Housing length75 mm
Housing height12 mm
Housing width12 mm
Transmission exitradial
Assembly distance (sensor to sensor)250 mm
Housing materialAluminum (Black, Anodized)
MaterialEpoxy resin, PUR (Transducer surface)
Weight30 g
Protection classIII, operation on protective low voltage
ApprovalsUL
Operating principleUltrasonic sensor, Ultrasonic barrier
Evaluationdigital, analog
DesignCuboid design
CharacteristicsIO-Link
Parallel operation possibleYes
Operation modesSTANDARD, Master / slave function (synchronization or multiplex operation)
FunctionsAnalog 0…10V / 4…20mA / 0… 20mA (Pin 2), Teach, Out 1, IO-Link, multiplex, synchronization (PIN 4)
Switching outputPush-pull, 150 mA, NO/NC, switchable
Max. switch current150 mA
Voltage drop (max.)2 V
Analog output0 … 10 V, 4 … 20 mA (0 ... 20 mA IO-Link)
Analog output linearity< 0.8 %
InterfaceIO-Link (V1.1, COM2 38.4 kBd, Smart Sensor Profile)
Load resistance> 10 KΩ (0 … 10 V) / < 400 Ω (4 … 20 mA / 0 ... 20 mA)
Nominal switching distance (Sn)400 mm
Range40 … 400 mm
Adjustment range40 … 400 mm (Teach in)
Resolution1.0 mm (Adjusted measuring range/4095 (analog output))
Standardized measuring plate100 x 100 mm
Switching hysteresis (max.)2 … 20 mm (Adjustable by IO-Link)
Reproducibility< 0.5 mm
Linearity error< 0.8 %
Sensitivity adjustmentRemote teach
DisplayLED green - Status, 1x yellow - Switching output
Measuring frequency250 Hz
Ultrasonic frequency300 kHz
Switching frequency< 10 Hz
Readiness delay (max.)300 ms
Shock/vibration load30 g, 11 ms / 10 … 55 Hz, 1.0 mm
Ambient temperature during operation-25 … +70 °C
Temperature drift0.2 %/K (uncompensated)
Temperature drift< 1 %/Sn (compensated)
Protection typeIP 67
ConnectionConnector, M8, 4-pin
Connection cableTK … /4
