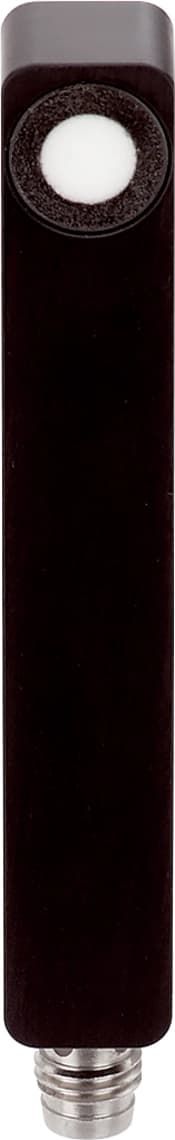

Ultrasonic sensor US-Q12

US Q12 M 200 G3-T4
Article Number: 210962

The US-Q12 is the compact class in cubic form and with a small mounting depth. Equipped with an IO-Link interface, the sensor can be operated to switch or to measure. Its area of application is short distances, and the sensitivity is adjusted simply via auto-teach, potentiometer or IO-Link.
IO-Link
Configurable as an ultrasonic sensor or barrier
3 different teach modes
Working range adjustable
Very narrow detection beam / small blind zone
Switching functions: Closer/opener, window function teachable
Resistant to dirt
Small design
Robust metal housing
Protection class IP 67

Collapse all
Service voltage18 … 30 V DC
No-load current (max.)40 mA (24 V DC)
Inverse polarity protectionYes
Short-circuit protectionYes
Insulation voltage endurance500 V
Housing dimensions12 x 12 x 75 mm
Housing length75 mm
Housing height12 mm
Housing width12 mm
Transmission exitradial
Assembly distance (sensor to sensor)60 mm
Housing materialAluminum (Black, Anodized)
MaterialEpoxy resin, PUR (Transducer surface)
Protection classIII, operation on protective low voltage
ApprovalsUL
Operating principleUltrasonic sensor, Ultrasonic barrier
Evaluationdigital
DesignCuboid design
CharacteristicsIO-Link
Parallel operation possibleNo
Switching outputPush-pull, 150 mA, NO/NC, switchable
Max. switch current150 mA
Voltage drop (max.)2 V
InterfaceIO-Link (V1.1, COM2 38.4 kBd, Smart Sensor Profile)
Nominal switching distance (Sn)200 mm
Range20 … 200 mm (adjustable)
Adjustment range20 … 200 mm (Teach in)
Resolution1.0 mm
Standardized measuring plate100 x 100 mm
Switching hysteresis (max.)2 … 20 mm (Adjustable by IO-Link)
Reproducibility< 0.5 mm
Sensitivity adjustmentRemote teach
DisplayLED 1x yellow - Switching output
Ultrasonic frequency400 kHz
Switching frequency20 Hz
Readiness delay (max.)300 ms
Shock/vibration load30 g, 11 ms / 10 … 55 Hz, 1.0 mm
Ambient temperature during operation-25 … +70 °C
Temperature drift0.2 %/K (uncompensated)
Temperature drift< 1 %/Sn (compensated)
Protection typeIP 67
ConnectionConnector, M8, 4-pin
Connection cableTK … /4
