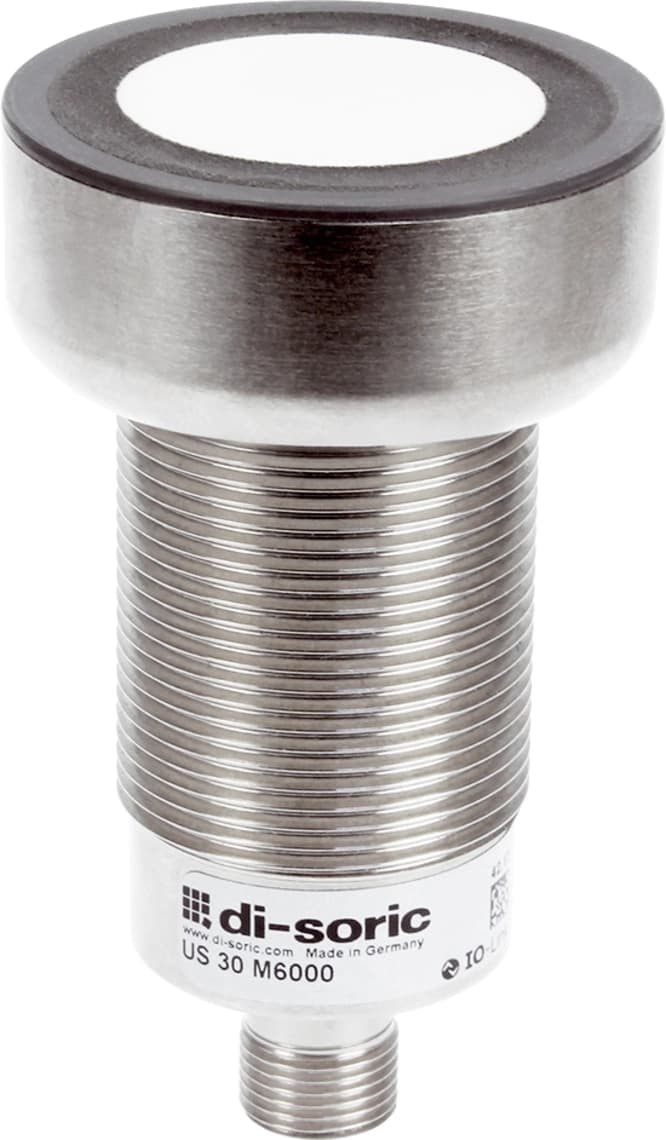

US 30 M 6000 IU-B4 US-M30 Ultrasonic sensors

Name: US 30 M 6000 IU-B4 US-M30 Ultrasonic sensors
Brand: Di-soric
SKU: us-30-m-6000-iu-b4-us-m30-ultrasonic-sensors
Availability: InStock

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about US 30 M 6000 IU-B4 US-M30 Ultrasonic sensors

Description

Ultrasonic sensor US-M30

US 30 M 6000 IU-B4
Article Number: 210596

The US-M30 is the right choice for large ranges up to 6,000 mm. It is distinguished by its compact, short design. The sensor can be operated to measure and switch. The US M30 is quickly operational thanks to simple teach-in and IO-Link.
IO-Link
Configurable as an ultrasonic sensor or barrier
Analog current output
3 different teach modes
Resistant to dirt
Metal casing
Plug connector M12
Protection class IP 67

Collapse all

Service voltage18 … 30 V DC

No-load current (max.)45 mA (24 V DC)

Inverse polarity protectionyes, except for the analog output PIN2

Short-circuit protectionYes

Insulation voltage endurance500 V

Housing dimensionsM30 x 78 mm

ThreadM30 x 1.5

Housing length78 mm

Transmission exitaxial

Assembly distance (sensor to sensor)1400 mm

Transmission angle of the object10°

Housing materialBrass (CuZn, nickel-plated)

MaterialEpoxy resin, PUR (Transducer surface)

Weight140 g

Protection classIII, operation on protective low voltage

ApprovalsUL

Operating principleUltrasonic sensor, Ultrasonic barrier

Evaluationdigital, analog

DesignThread

CharacteristicsIO-Link

Parallel operation possibleYes

Operation modesSTANDARD, Master / slave function (synchronization or multiplex operation)

Scope of deliverySensor, 2 x M30 nuts

FunctionsAnalog 0…10V / 4…20mA / 0… 20mA, Teach, switching output push-pull, PNP, NPN (Pin 2), Teach , push-pull, PNP, NPN, synchronization, multiplex (PIN 4)

Switching outputPush-pull, 100 mA, NO/NC, switchable

Max. switch current100 mA

Voltage drop (max.)2 V

Analog output0 … 10 V, 4 … 20 mA (0 ... 20 mA IO-Link)

InterfaceIO-Link (V1.1, COM2 38.4 kBd, Smart Sensor Profile)

Load resistance> 10 KΩ (0 … 10 V) / < 400 Ω (4 … 20 mA / 0 ... 20 mA)

Nominal switching distance (Sn)6000 mm

Range600 … 6000 mm

Adjustment range600 … 6000 mm (Teach in)

ResolutionØ 1.0 mm (Adjusted measuring range/4095 (analog output))

Standardized measuring plate200 x 200 mm

Switching hysteresis (max.)5 … 50 mm (Adjustable by IO-Link)

Reproducibility4.0 mm

Linearity error± 0.5 %

Sensitivity adjustmentRemote teach

DisplayLED 1x green - Status, 1x yellow - Switching output

Measuring frequency17 Hz

Ultrasonic frequency80 kHz

Switching frequency2 Hz

Readiness delay (max.)300 ms

Shock/vibration load30 g, 11 ms / 10 … 55 Hz, 1.0 mm

Ambient temperature during operation-25 … +70 °C

Temperature drift0.2 %/K (uncompensated)

Temperature drift< 1.5 %/Sn (compensated)

Protection typeIP 67

ConnectionConnector, M12, 4-pin

Connection cableVKHM … /4
