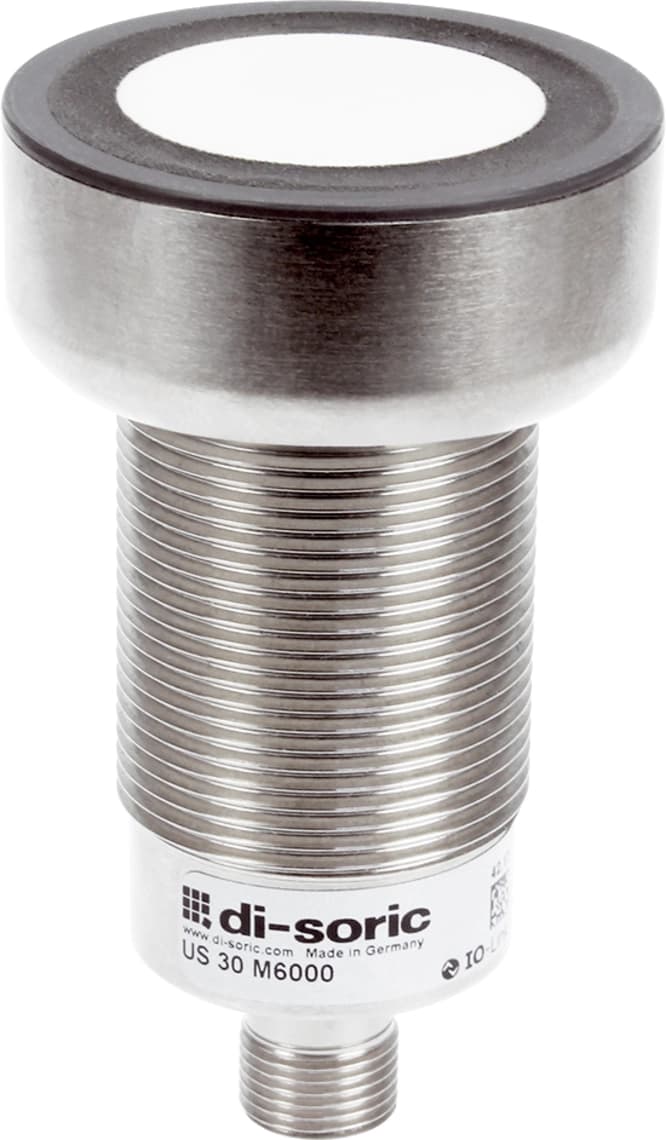

Ultrasonic sensor US-M30

US 30 M 6000 G3-B4
Article Number: 210595

The US-M30 is the right choice for large ranges up to 6,000 mm. It is distinguished by its compact, short design. The sensor can be operated to measure and switch. The US M30 is quickly operational thanks to simple teach-in and IO-Link.
IO-Link
Configurable as an ultrasonic sensor or barrier
3 different teach modes
Resistant to dirt
Metal casing
Plug connector M12
Protection class IP 67

Collapse all
Service voltage18 … 30 V DC
No-load current (max.)45 mA (24 V DC)
Inverse polarity protectionYes
Short-circuit protectionYes
Insulation voltage endurance500 V
Housing dimensionsM30 x 78 mm
ThreadM30 x 1.5
Housing length78 mm
Transmission exitaxial
Assembly distance (sensor to sensor)1400 mm
Transmission angle of the object10°
Housing materialBrass (CuZn, nickel-plated)
MaterialEpoxy resin, PUR (Transducer surface)
Weight140 g
Protection classIII, operation on protective low voltage
ApprovalsUL
Operating principleUltrasonic sensor, Ultrasonic barrier
Evaluationdigital
DesignThread
CharacteristicsIO-Link
Parallel operation possibleNo
Scope of deliverySensor, 2 x M30 nuts
FunctionsTeach (Pin 2), Out 1, IO-Link (Pin 4)
Switching outputPush-pull, 100 mA, NO/NC, switchable
Max. switch current100 mA
Voltage drop (max.)2 V
InterfaceIO-Link (V1.1, COM2 38.4 kBd, Smart Sensor Profile)
Nominal switching distance (Sn)6000 mm
Range600 … 6000 mm
Adjustment range600 … 6000 mm (Teach in)
ResolutionØ 1.0 mm
Standardized measuring plate200 x 200 mm
Switching hysteresis (max.)5 … 50 mm (Adjustable by IO-Link)
Reproducibility4.0 mm
Linearity error± 0.5 %
Sensitivity adjustmentRemote teach
DisplayLED 1x green - Status, 1x yellow - Switching output
Ultrasonic frequency80 kHz
Switching frequency2 Hz
Readiness delay (max.)300 ms
Shock/vibration load30 g, 11 ms / 10 … 55 Hz, 1.0 mm
Ambient temperature during operation-25 … +70 °C
Temperature drift0.2 %/K (uncompensated)
Temperature drift< 1.5 %/Sn (compensated)
Protection typeIP 67
ConnectionConnector, M12, 4-pin
Connection cableVKHM … /4
