Description

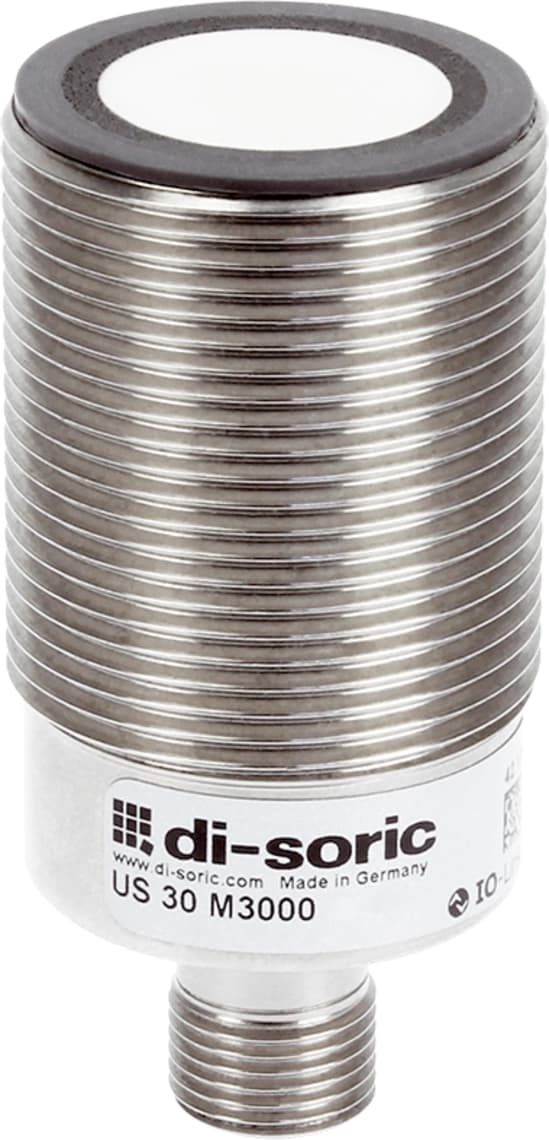

Ultrasonic sensor US-M30

US 30 M 3000 G3-B4
Article Number: 210593

The US-M30 is the right choice for large ranges up to 6,000 mm. It is distinguished by its compact, short design. The sensor can be operated to measure and switch. The US M30 is quickly operational thanks to simple teach-in and IO-Link.
IO-Link
Configurable as an ultrasonic sensor or barrier
3 different teach modes
Resistant to dirt
Metal casing
Plug connector M12
Protection class IP 67

Collapse all
Service voltage18 … 30 V DC
No-load current (max.)45 mA (24 V DC)
Inverse polarity protectionYes
Short-circuit protectionYes
Insulation voltage endurance500 V
Housing dimensionsM30 x 60 mm
ThreadM30 x 1.5
Housing length60 mm
Transmission exitaxial
Assembly distance (sensor to sensor)500 mm
Transmission angle of the object10°
Housing materialBrass (CuZn, nickel-plated)
MaterialEpoxy resin, PUR (Transducer surface)
Weight70 g
Protection classIII, operation on protective low voltage
ApprovalsUL
Operating principleUltrasonic sensor, Ultrasonic barrier
Evaluationdigital (With IO-Link)
DesignThread
CharacteristicsIO-Link
Parallel operation possibleNo
Scope of deliverySensor, 2 x M30 nuts
FunctionsTeach (Pin 2), Out 1, IO-Link (Pin 4)
Switching outputPush-pull, 100 mA, NO/NC, switchable
Max. switch current100 mA
Voltage drop (max.)2 V
InterfaceIO-Link (V1.1, COM2 38.4 kBd, Smart Sensor Profile)
Nominal switching distance (Sn)3000 mm
Range300 … 3000 mm
Adjustment range300 … 3000 mm (Teach in)
ResolutionØ 1.0 mm
Standardized measuring plate200 x 200 mm
Switching hysteresis (max.)5 … 50 mm (adjustable via IO-Link / 15 mm factory setting)
Reproducibility2.0 mm
Sensitivity adjustmentRemote teach
DisplayLED 1x green - Status, 1x yellow - Switching output
Ultrasonic frequency125 kHz
Switching frequency3 Hz
Readiness delay (max.)300 ms
Shock/vibration load30 g, 11 ms / 10 … 55 Hz, 1.0 mm
Ambient temperature during operation-25 … +70 °C
Temperature drift0.2 %/K (uncompensated)
Temperature drift< 1.5 %/Sn (compensated)
Protection typeIP 67
ConnectionConnector, M12, 4-pin
Connection cableVKHM … /4
