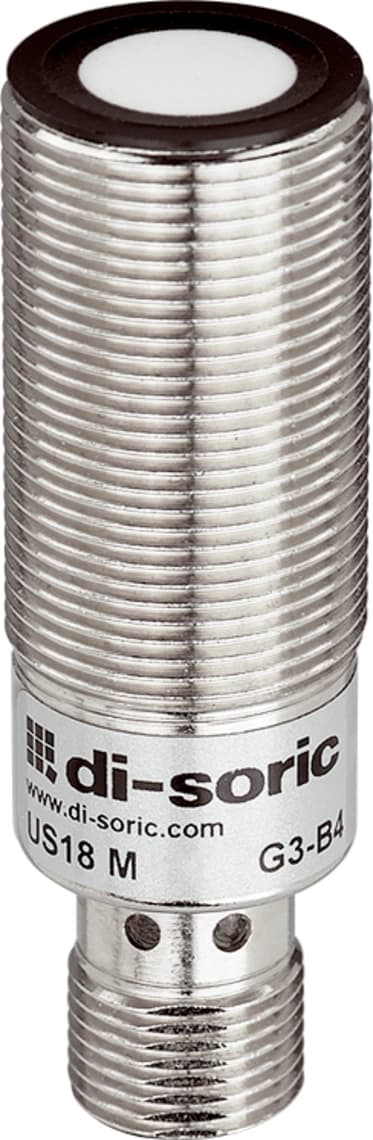

US 18 M 1500 G3-B4 US-M18 Ultrasonic sensors

Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about US 18 M 1500 G3-B4 US-M18 Ultrasonic sensors

Description

Collapse all
Service voltage18 … 30 V DC
No-load current (max.)40 mA (24 V DC)
Inverse polarity protectionYes
Short-circuit protectionYes
Insulation voltage endurance500 V
Housing dimensionsM18 x 55 mm
ThreadM18 x 1
Housing length55 mm
Transmission exitaxial
Assembly distance (sensor to sensor)700 mm
Housing materialBrass (nickel-plated)
MaterialEpoxy resin, PUR (Transducer surface)
Weight30 g
Protection classIII, operation on protective low voltage
ApprovalsUL
Operating principleUltrasonic sensor, Ultrasonic barrier
Evaluationdigital
DesignThread
CharacteristicsIO-Link
Parallel operation possibleNo
Scope of deliverySensor, 2 x M18 nuts
FunctionsTeach (Pin 2), Out 1, IO-Link (Pin 4)
Switching outputPush-pull, 150 mA, NO/NC, switchable
Max. switch current150 mA
Voltage drop (max.)2 V
InterfaceIO-Link (V1.1, COM2 (38.4 kBd) Smart Sensor Profile)
Nominal switching distance (Sn)1500 mm
Range150 … 1500 mm
Adjustment range150 … 1500 mm (Teach in)
Resolution1.0 mm (IO-Link)
Standardized measuring plate200 x 200 mm
Switching hysteresis (max.)6 mm (Adjustable up to 20 mm via IO-Link)
Reproducibility< 1 mm
Sensitivity adjustmentRemote teach
DisplayLED 1x green - Status, 1x yellow - Switching output
Ultrasonic frequency200 kHz
Switching frequency< 5 Hz
Readiness delay (max.)300 ms
Shock/vibration load30 g, 11 ms / 10 … 55 Hz, 1.0 mm
Ambient temperature during operation-25 … +70 °C
Temperature drift0.2 %/K (compensated)
Temperature drift< 1 %/Sn (compensated)
Protection typeIP 67
ConnectionConnector, M12, 4-pin
Connection cableVKHM … /4
