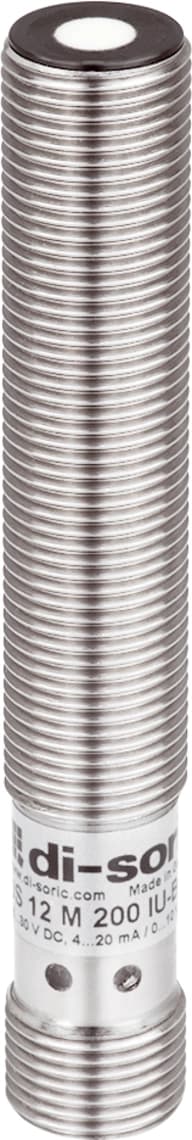

US 12 M 200 IU-B4 US-M12 Ultrasonic sensors

Name: US 12 M 200 IU-B4 US-M12 Ultrasonic sensors
Brand: Di-soric
SKU: us-12-m-200-iu-b4-us-m12-ultrasonic-sensors
Availability: InStock

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about US 12 M 200 IU-B4 US-M12 Ultrasonic sensors

Description

Ultrasonic sensor US-M12

US 12 M 200 IU-B4
Article Number: 212882

The US-M12 is the compact class of ultrasonic sensors in the M12 housing. Equipped with an IO-Link interface, the sensor can be operated to switch or to measure. The sensitivity can also be adjusted via auto-teach, so the sensor is thus operational within a few seconds.
IO-Link
Configurable as an ultrasonic sensor or barrier
3 different teach modes
Working range adjustable
Analog output
Very narrow detection beam / small blind zone
Resistant to dirt
Small design
Robust metal housing
Protection class IP 67

Collapse all

Service voltage18 … 30 V DC

No-load current (max.)40 mA (24 V DC)

Inverse polarity protectionyes, except for the analog output PIN2

Short-circuit protectionYes

Insulation voltage endurance500 V

Housing dimensionsM12 x 65 mm

ThreadM12 x 1

Housing length65 mm

Transmission exitaxial

Assembly distance (sensor to sensor)60 mm

Housing materialBrass (CuZn, nickel-plated)

MaterialEpoxy resin, PUR (Transducer surface)

Weight18 g

Protection classIII, operation on protective low voltage

ApprovalsUL

Operating principleUltrasonic sensor, Ultrasonic barrier

Evaluationdigital, analog (With IO-Link)

DesignThread

CharacteristicsIO-Link

Parallel operation possibleYes

Operation modesSTANDARD, Master / slave function (synchronization or multiplex operation)

Scope of deliverySensor, 2 x M12 nuts

FunctionsTeach, Out 1, IO-Link, multiplex, synchronization (PIN 4), Analog 0…10V / 4…20mA / 0… 20mA (Pin 2)

Switching outputPush-pull, 150 mA, NO/NC, switchable

Max. switch current150 mA

Voltage drop (max.)2 V

Analog output0 … 10 V, 4 … 20 mA (0 ... 20 mA IO-Link)

InterfaceIO-Link (V1.1, COM2 38.4 kBd, Smart Sensor Profile)

Load resistance> 10 KΩ (0 … 10 V) / < 400 Ω (4 … 20 mA / 0 ... 20 mA)

Nominal switching distance (Sn)200 mm

Range20 … 200 mm

Adjustment range20 … 200 mm (Teach in)

Resolution1.0 mm (Adjusted measuring range/4095 (analog output))

Standardized measuring plate100 x 100 mm

Switching hysteresis (max.)2 … 20 mm (Adjustable by IO-Link)

Reproducibility< 0.5 mm

Linearity error± 0.4 %

Sensitivity adjustmentRemote teach

DisplayLED 1x green - Status, 1x yellow - Switching output

Measuring frequency400 Hz

Ultrasonic frequency400 kHz

Switching frequency20 Hz

Readiness delay (max.)300 ms

Shock/vibration load30 g, 11 ms / 10 … 55 Hz, 1.0 mm

Ambient temperature during operation-25 … +70 °C

Temperature drift0.2 %/K (uncompensated)

Temperature drift< 1 %/Sn (compensated)

Protection typeIP 67

ConnectionConnector, M12, 4-pin

Connection cableVKHM … /4
