Description

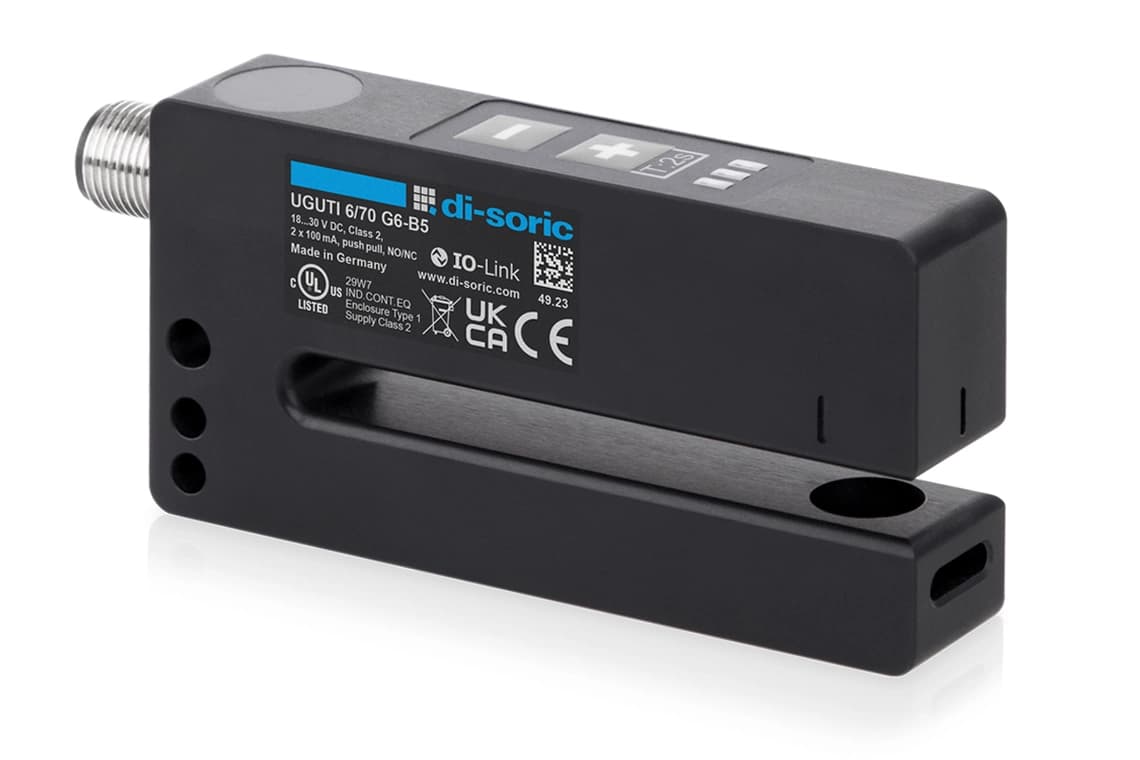

UGUTI ultrasonic label sensor

UGUTI 6/70 G6-B5
Article Number: 210258

The innovative dual operation concept—implemented using either IO-Link or auto-teach—makes it possible to put the UGUTI label sensors into operation quickly.

Detection of metallized foil, transparent and paper labels
Intuitive teach-in using a membrane keyboard and with fine adjustment
High reproducibility
Short response time
Robust metal housing
Large fork width and fork depth
Remote teach with key-lock function
IO-Link parameters with IO-Link switch-on and switch-off delay
Multi output (Pin2) stability (factory setting) / label recognized
Parallel operation Pin2 / label detected and IO-Link (pin 4)

Collapse all
Service voltage18 … 30 V DC
No-load current (max.)40 mA
Insulation voltage endurance500 V
Fork opening6 mm
Leg length internal70 mm
Housing dimensions45 x 18 x 90 mm
Housing length90 mm
Housing height45 mm
Housing width18 mm
Housing materialAluminum (Black, Anodized)
Protection classIII, operation on protective low voltage
ApprovalsUL
Operating principleUltrasonic through-beam sensor
Evaluationdigital
DesignFork
CharacteristicsConnector outlet at the back
Product seriesUGUTI Ultrasonic
Switching outputPush-pull (2x), NO/NC, switchable
Max. switch current100 mA (each output)
InterfaceIO-Link (V1.1, COM2 38.4 kBd, Smart Sensor Profile)
Label interspace> 2 mm
Label thickness< 5.9 mm
Reproducibility± 0.2 mm
Sensitivity adjustmentRemote teach, Keypad
DisplayLED green - Status, yellow - Switching output, Red - Stability insufficient
Response time0.25 ms
Readiness delay (max.)180 ms
Ambient temperature during operation0 … +60 °C
Protection typeIP 67
ConnectionConnector, M12, 5-pin
