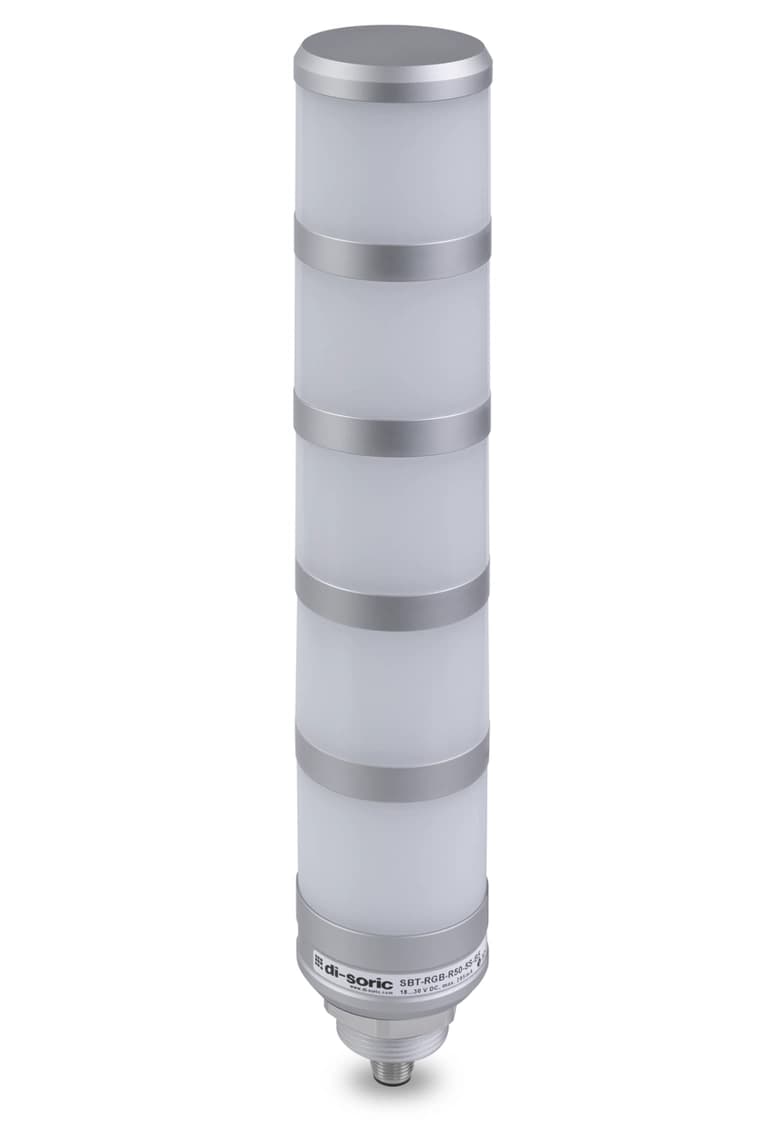

SBT-RGB-R50-5S-B5 SBT-RGB Multicolor Signal lights

Di-soric Signal lights Industrial Automation - SBT-RGB-R50-5S-B5 SBT-RGB Multicolor Signal lights
Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about SBT-RGB-R50-5S-B5 SBT-RGB Multicolor Signal lights

Description

SBT-RGB Multicolor

SBT-RGB-R50-5S-B5
Article Number: 213756

The high-efficiency, multi-segment signal tower lights from di-soric offers 360° visibility. A nearly infinite number of colors, and the individual brightness and the blinking behavior can be parameterized for each segment of the stack lights through IO-Link. The compact design and high protection type of the variants without a buzzer enable use in rough ambient conditions. The greatest flexibility is made possible in combination with a buzzer.
Status display 360°
Strong signal effect thanks to state-of-the art, high-efficiency LEDs
Low energy consumption
Can be used immediately thanks to three trigger inputs (eight predefined/user-defined color settings)
Freely configurable functions via IO-Link (process data)
Simple installation (M30 threading)

Collapse all
Service voltage18 … 30 V DC (Supply Class 2)
Internal power consumption285 mA (24 V DC)
Power6.8 W (24 V)
Inverse polarity protectionYes
Illuminated area50 x 37 mm (Ø x H / segment)
Number of segments5
Housing materialAluminum (natural, Anodized)
MaterialPolycarbonate (Diffusor)
Weight350 g
Protection classIII
ApprovalsUL
ModelSignal column
DesignColumn
Operating modesExternal trigger / segment mode / level mode / demo mode, LED operating modes: Static / Blinking / Flashing
BuzzerWithout buzzer
Color selectionRed, green, yellow, blue, white, orange, pink, user-defined
Light intensity can be adjusted10 to 100 %, via IO-Link
Scope of deliverySignal light incl. washer and M30 nut (pre-assembled)
Trigger input high level> 8.0 V
Trigger input low level< 5.0 V
Trigger input8 color presets: selectable via trigger 1 + 2 +3
InterfaceIO-Link (V1.1, COM2 38,4 kBd, 5000 µs) for parameterization (process data)
ColorRGB
Vibration load10 … 55 Hz / 0.35 mm
Ambient temperature during operation0 … +50 °C
Protection typeIP 65
ConnectionConnector, M12, 5-pin
Connection cableVK … /5-SB
