Get more information about SBT-F-BGYR-R50-4B-B8 SBT-F Fixed Color Signal lights

Description

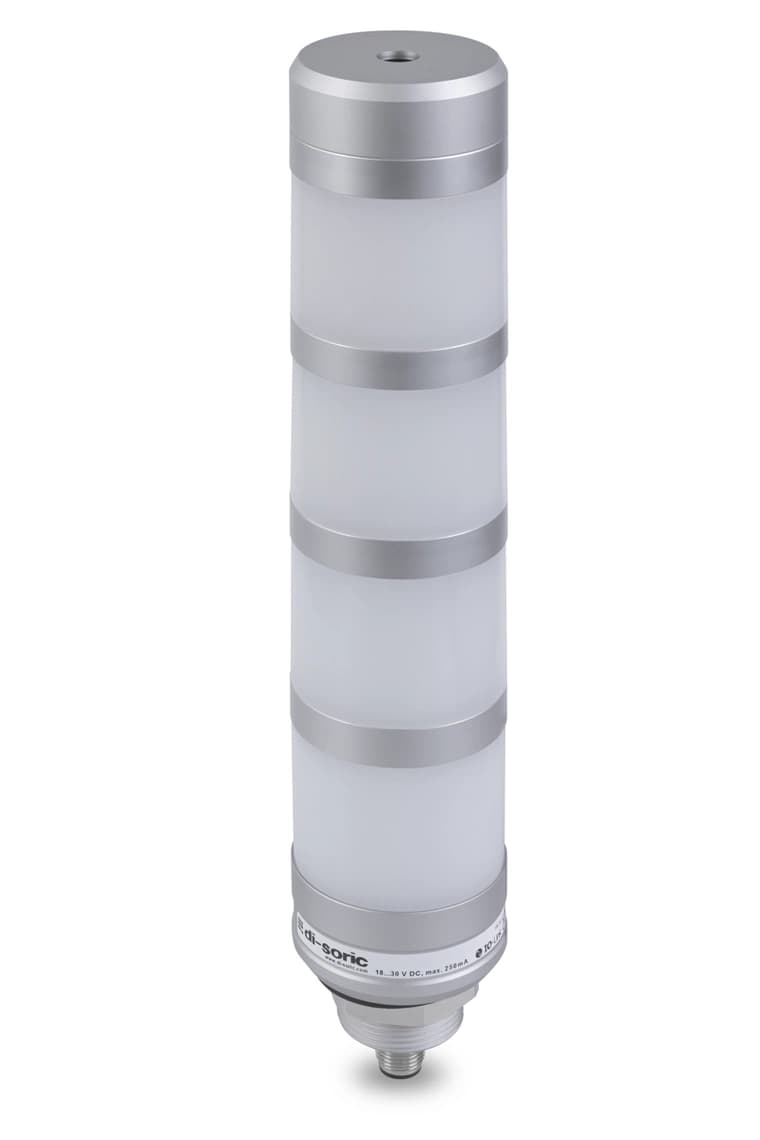

SBT-F Fixed Color

SBT-F-BGYR-R50-4B-B8
Article Number: 213812

The high-efficiency, multi-segment signal tower lights from di-soric offers 360° visibility. With the fixed color coding per segment, the stack lights can be used immediately. The compact design and high protection type of the variants without a buzzer enable use in rough ambient conditions. In combination with a buzzer, the functional scope is substantially expanded.
Status display 360°
Good signal effect thanks to state-of-the art, efficient LEDs
Low energy consumption
Immediately usable, direct predefined segment activation
Simple installation (M30 threading)
Assembly accessories optionally available
Buzzer

Collapse all
Service voltage24 V DC (Supply Class 2)
Internal power consumption180 mA (24 V DC)
Power4.3 W (24 V)
Inverse polarity protectionYes
Illuminated area50 x 37 mm (Ø x H / segment)
Number of segments4
Housing materialAluminum (natural, Anodized)
MaterialPolycarbonate (Diffusor)
Weight350 g
Protection classIII
ApprovalsUL
ModelSignal column
DesignColumn
BuzzerWith buzzer, 95 (dB(A) typ. @ 50 cm)
Color selectionBlue, Green, Yellow, Red
Scope of deliverySignal light incl. washer and M30 nut (pre-assembled)
Number of inputs/outputs5/0
Input level (high/low)24V / 0V
Interface24 V DC
ColorBlue, Green, Yellow, Red
LED lifespan> 50000 h
Vibration load10 … 55 Hz / 0.35 mm
Ambient temperature during operation0 … +50 °C
Protection typeIP 20
ConnectionConnector, M12, 8-pin
Connection cableVK … /8-SB
