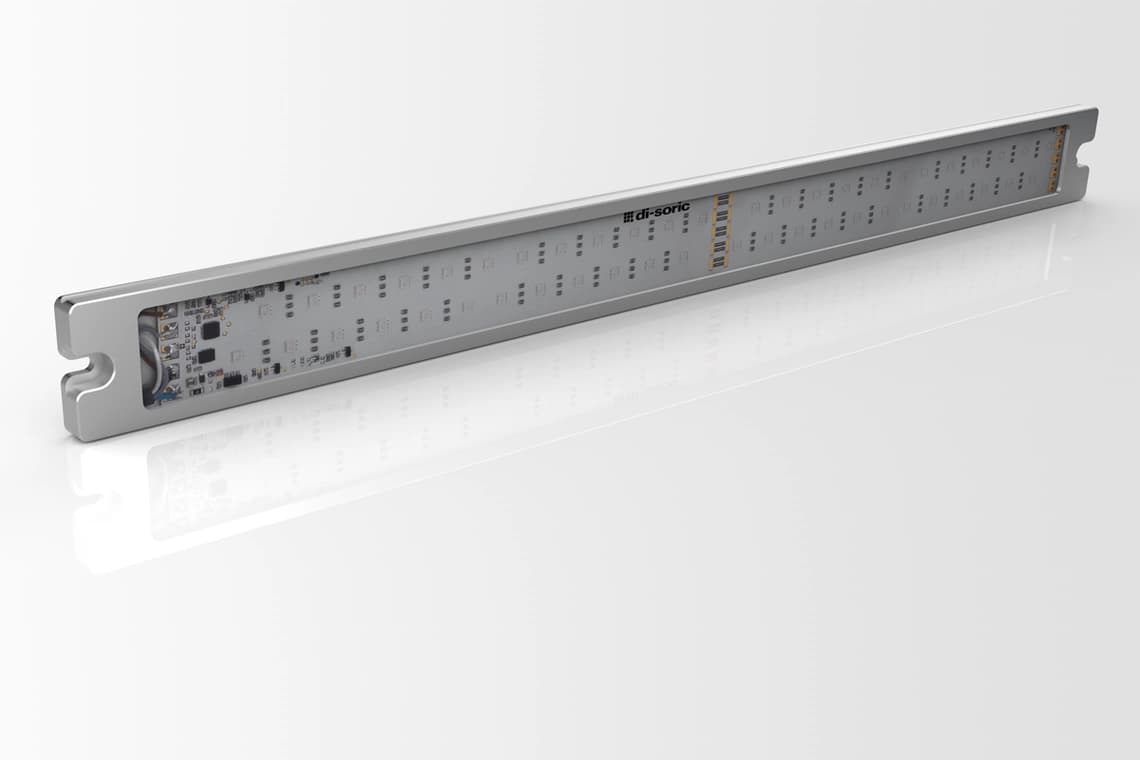

SB-RGB-481-K-B5 SB-RGB Signal lighting

Name: SB-RGB-481-K-B5 SB-RGB Signal lighting
Brand: Di-soric
SKU: sb-rgb-481-k-b5-sb-rgb-signal-lighting
Availability: InStock

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about SB-RGB-481-K-B5 SB-RGB Signal lighting

Description

Multi-segment IOL signal light

SB-RGB-481-K-B5
Article Number: 213115

SB-RGB signal lighting with IO-Link are intelligent units that can be adapted to custom requirements. They feature a large RGB illuminated area and display the machine status so that it is visible from far away. They can be configured by means of IO-Link – light functions such as color, brightness and the flashing of individual colors can be freely adjusted. Even without IO-Link configuration, the SB-RGB can be used immediately out-of-the-box thanks to 3 triggerable color presets.
Six segments: external trigger / segment mode / level mode / demo mode
Easy operation is also possible without IO-Link
Freely configurable functions via IO-Link
Long life thanks to intelligent thermal management
Large light field for optimal display of the machine status
High protection type IP 67
Magnetic holder set available as an option
Adjustable mounting angle optionally available
Pluggable diffusion filter optionally available

Collapse all

Service voltage18 … 30 V DC (Supply Class 2)

Internal power consumption380 mA (24 V DC)

Power9.1 W (24 V DC)

Inverse polarity protectionYes

Illuminated area440 x 30 mm

Housing length480 mm

Housing height10 mm

Housing width40 mm

Housing materialAluminum (natural, Anodized)

MaterialPU, crystal clear (Window)

Weight390 g

Protection classIII, operation on protective low voltage

Risk group (DIN EN 62471)Free group

ApprovalsUL

ModelSignal lighting

Product seriesSB-RGB

Number of segments (max)6

Operation modesExternal trigger / segment mode / level mode / demo mode, LED operating modes: Static / Blinking / Flashing

Light intensity can be adjusted10 to 100 %, via IO-Link

Trigger input high level> 8.0 V

Trigger input low level< 5.0 V

Trigger input8 color presets: selectable via trigger 1 + 2 +3

InterfaceIO-Link (V1.1, COM2 38,4 kBd, 5000 µs) Process data

Light sourceLED

ColorRed, green, yellow, blue, white, orange, pink, user-defined (IO-Link)

Deflection angle FWHM120°

Shock/vibration load30 g, 11 ms / 10 … 55 Hz, 1.0 mm

Ambient temperature during operation0 … +50 °C

Protection typeIP 67

ConnectionPigtail, 0.3 m, M12, 5-pin

Connection cableVK … /5
