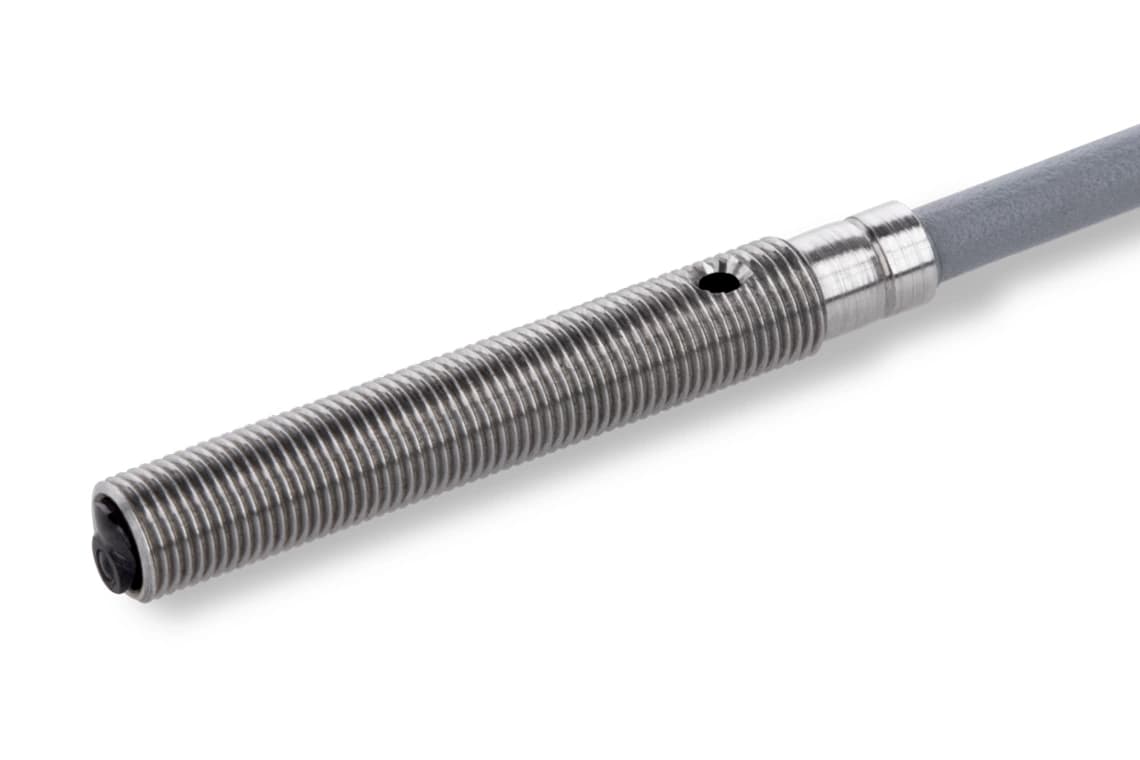

OTM05-50PS-2R O-M5 Optical sensors

Di-soric Optical sensors Industrial Automation - OTM05-50PS-2R O-M5 Optical sensors

OTM05-50PS-2R O-M5 Optical sensors

Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about OTM05-50PS-2R O-M5 Optical sensors

Description

Collapse all
Service voltage10 … 30 V DC
No-load current (max.)15 mA
Inverse polarity protectionYes
ThreadM5 x 0.5
Housing length35.8 mm
Housing materialStainless steel (V4A)
Material of cablePolyurethane
MaterialPlastic (Window / optics)
Weight30 g
Protection classIII, operation on protective low voltage
ApprovalsUL
Operating principleRetroreflective diffuse sensor
Evaluationdigital
DesignThread
Switching outputpnp, 100 mA, NO
Voltage drop (max.)2 V
Light sourceLED
ColorRed
Wavelength630 nm
Light spot size18 x 20 mm (at 50 mm distance)
Range0 … 50 mm
Standardized measuring plate200 x 200 mm (white)
Sensitivity adjustmentno setting elements
DisplayLED yellow - Switching output
Switching frequency1000 Hz
Ambient temperature during operation-25 … +65 °C
Protection typeIP 67
ConnectionCable, 2.0 m
