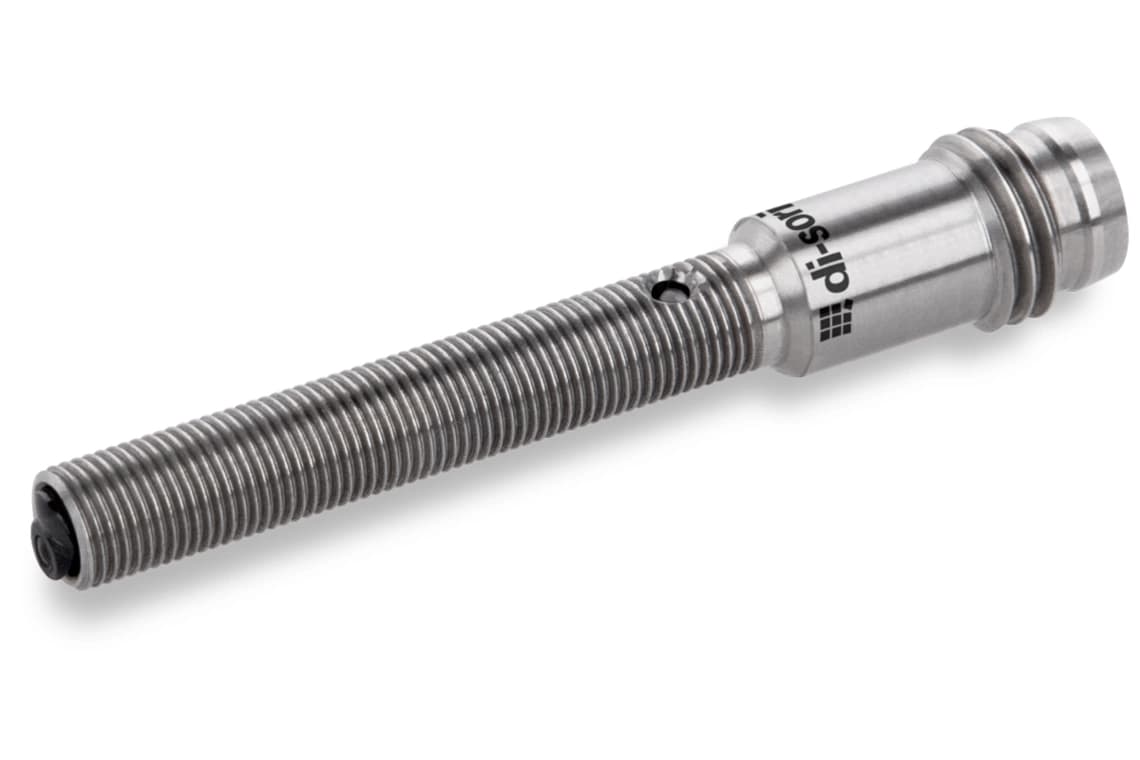

OTM05-10PS-T3 O-M5 Optical sensors

Di-soric Optical sensors Industrial Automation - OTM05-10PS-T3 O-M5 Optical sensors
Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about OTM05-10PS-T3 O-M5 Optical sensors

Description

OTM05-10PS-T3
Article Number: 213026

The devices in the O-M5 series are the smallest diffuse sensors from di-soric in a threaded model. The sensors are distinguished by their precise detection of objects and are ideal for mounting in confined space conditions.
Extremely small design
Red light
Scanning range preset
Stainless steel housing
Can be installed countersunk
Large temperature range

Collapse all
Service voltage10 … 30 V DC
No-load current (max.)15 mA
Inverse polarity protectionYes
ThreadM5 x 0.5
Housing length45.8 mm
Housing materialStainless steel (V4A)
MaterialPlastic (Window / optics)
Weight4 g
Protection classIII, operation on protective low voltage
ApprovalsUL
Operating principleRetroreflective diffuse sensor
Evaluationdigital
DesignThread
Switching outputpnp, 100 mA, NO
Voltage drop (max.)2 V
Light sourceLED
ColorRed
Wavelength630 nm
Light spot size5 x 6 mm (at distance of 10 mm)
Range0 … 10 mm
Standardized measuring plate200 x 200 mm (white)
Sensitivity adjustmentno setting elements
DisplayLED yellow - Switching output
Switching frequency1000 Hz
Ambient temperature during operation-25 … +65 °C
Protection typeIP 67
ConnectionConnector, M8, 3-pin
