OTD04-20PS-T3 O-D4 Optical sensors

Di-soric Optical sensors Industrial Automation - OTD04-20PS-T3 O-D4 Optical sensors

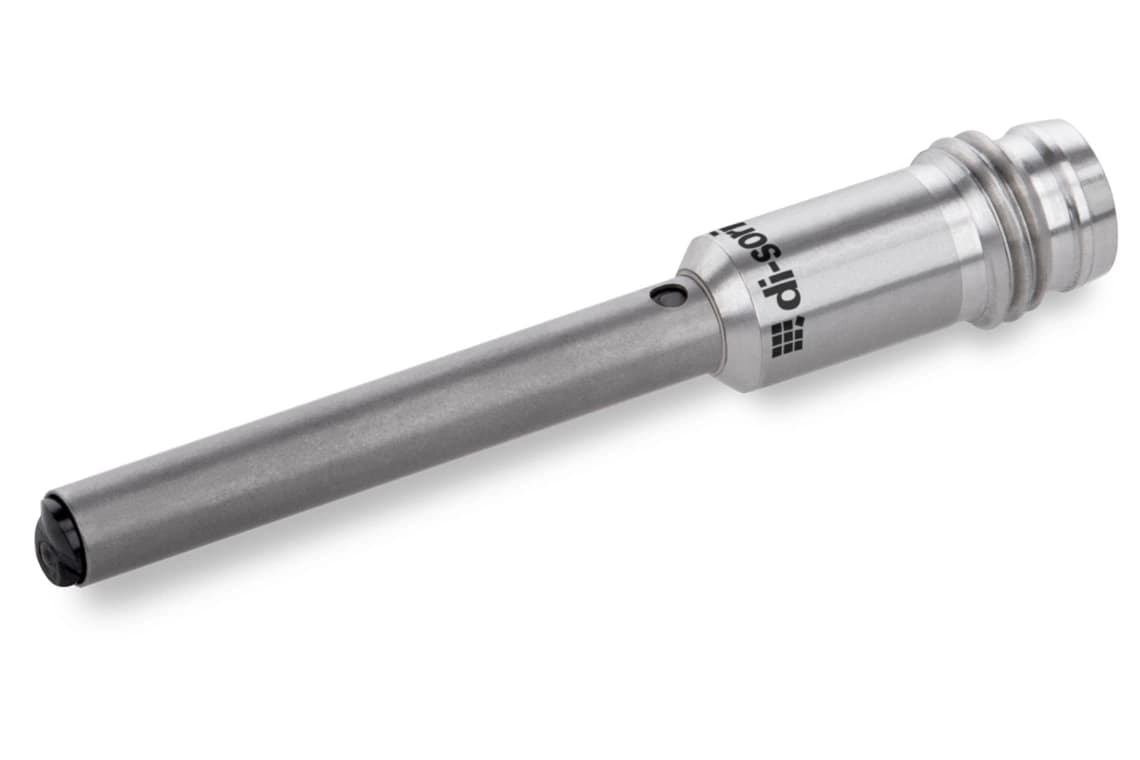

OTD04-20PS-T3 O-D4 Optical sensors

Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about OTD04-20PS-T3 O-D4 Optical sensors

Description

Collapse all
Service voltage10 … 30 V DC
No-load current (max.)15 mA
Inverse polarity protectionYes
DiameterØ 4.0 mm (Diameter)
Housing length45.8 mm
Housing materialStainless steel (V4A)
MaterialPlastic (Window / optics)
Weight4 g
Protection classIII, operation on protective low voltage
ApprovalsUL
Operating principleRetroreflective diffuse sensor
Evaluationdigital
DesignCylinder
Switching outputpnp, 100 mA, NO
Voltage drop (max.)2 V
Light sourceLED
ColorRed
Wavelength630 nm
Light spot size8 x 10 mm (at distance of 20 mm)
Range0 … 20 mm
Scanning range20 mm
Standardized measuring plate200 x 200 mm (white)
Sensitivity adjustmentno setting elements
Switching frequency1000 Hz
Ambient temperature during operation-25 … +65 °C
Protection typeIP 67
ConnectionConnector, M8, 3-pin
