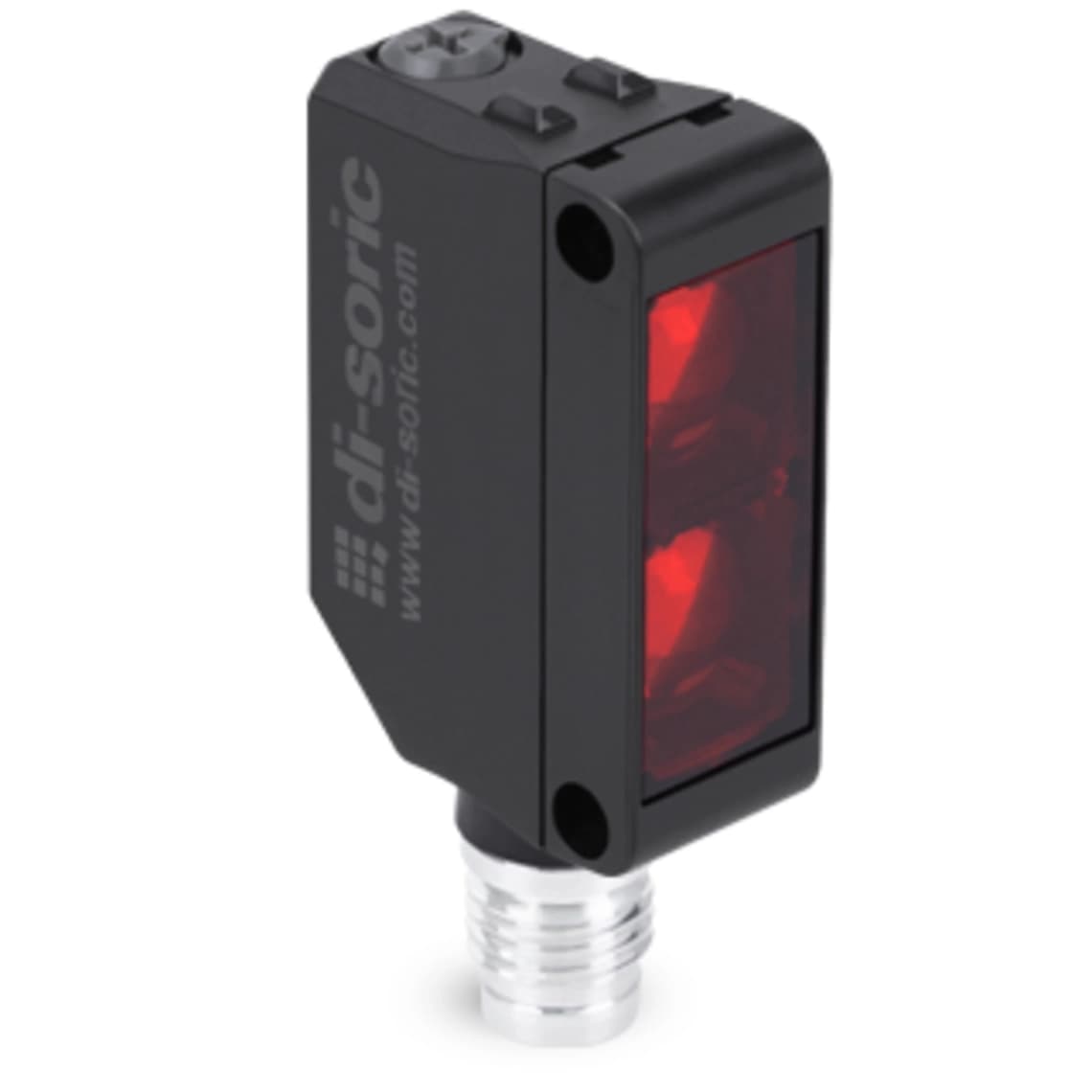

OT33-RMN-PT-G3-T4 O-33 Universal Optical sensors

Di-soric Optical sensors Industrial Automation - OT33-RMN-PT-G3-T4 O-33 Universal Optical sensors

OT33-RMN-PT-G3-T4 O-33 Universal Optical sensors

Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about OT33-RMN-PT-G3-T4 O-33 Universal Optical sensors

Description

Collapse all
Service voltage10 … 30 V DC
No-load current (max.)< 30 mA
Inverse polarity protectionYes
Short-circuit protectionYes
Housing dimensions31 x 20 x 11 mm
Housing length20 mm
Housing height31 mm
Housing width11 mm
Housing materialPlastic
MaterialPlastic (Window / optics)
Weight20 g
Protection classIII
ApprovalsUL
Operating principleRetroreflective diffuse sensor
Evaluationdigital
DesignCuboid design
Switching outputPush-pull, 100 mA, NO/NC, switchable
Voltage drop (max.)1 V
InterfaceIO-Link (V1.1, COM2 38.4 kBd, Smart Sensor Profile)
Light sourceLED
ColorRed
Wavelength620 nm
Range1 … 1000 mm
Standardized measuring plate200 x 200 mm (white)
Sensitivity adjustmentPotentiometer or IO-Link
DisplayLED green - Status, yellow - Switching output 1
Switching frequency1000 Hz
Ambient temperature during operation-25 … +60 °C
Protection typeIP 67
ConnectionConnector, M8, 4-pin
Connection cableTK … /4
