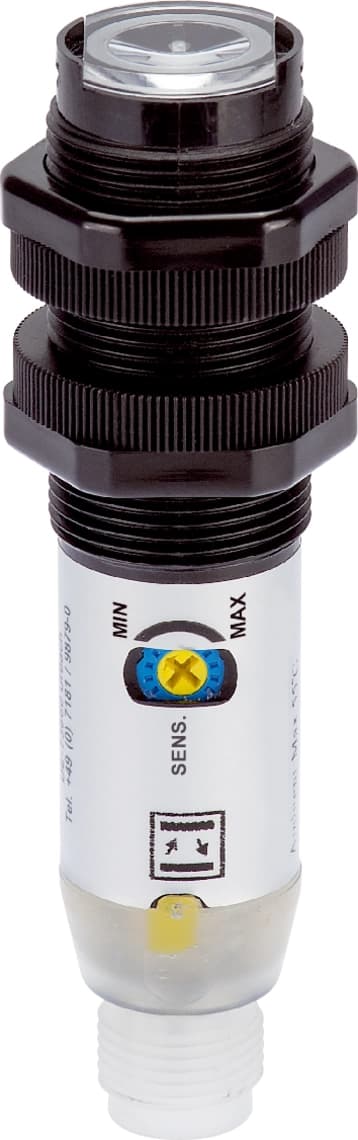

OT 18 K 30 P3-B4 O-M18 Standard Optical sensors

Di-soric Optical sensors Industrial Automation - OT 18 K 30 P3-B4 O-M18 Standard Optical sensors
Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about OT 18 K 30 P3-B4 O-M18 Standard Optical sensors

Description

OT 18 K 30 P3-B4
Article Number: 207582

The light barriers and diffuse reflective sensors in the O-M18 Standard series are ideal devices for economical and cost-efficient applications. The sensors are alternatively available in a straight model or with 90° angled optics. The plastic or metallic housing is distinguished by its short construction.
Infrared light
Sensitivity is adjustable
LED switching status display
Robust plastic housing
High protection type

Collapse all
Service voltage10 … 30 V DC
No-load current (max.)30 mA
Insulation voltage endurance1000 V
ThreadM18 x 1
Housing length80 mm
Housing materialPlastic
MaterialPMMA (Window)
Protection classIII, operation on protective low voltage
Operating principleRetroreflective diffuse sensor
Evaluationdigital
DesignThread
Switching outputpnp, 100 mA, NO/NC, programmable
Light sourceLED
ColorInfrared
Wavelength940 nm
ModulationClocked
Background suppressionYes
Ambient light immunity10 kLx
Range10 … 30 mm (adjustable)
Standardized measuring plate200 x 200 mm (white)
Sensitivity adjustmentPotentiometer
Switching frequency300 Hz
Response time2.0 ms
Release time2.0 ms
Ambient temperature during operation-25 … +55 °C
Protection typeIP 66
ConnectionConnector, M12, 4-pin
