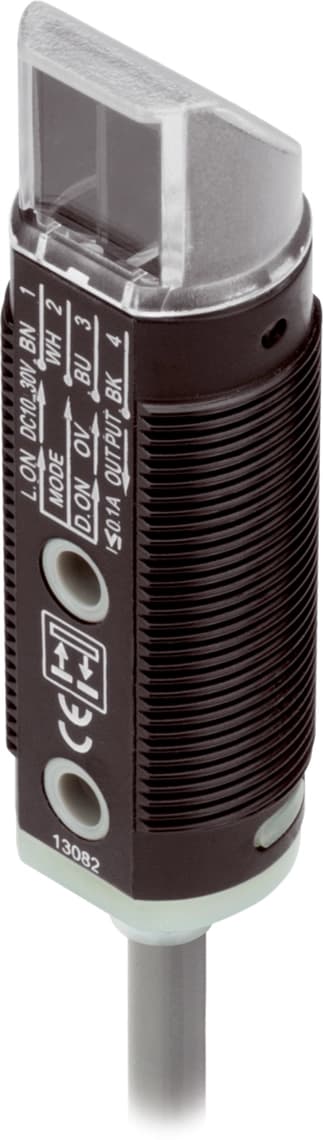

OT 18 FKR 600 P3 O-M18 Standard Optical sensors

Di-soric Optical sensors Industrial Automation - OT 18 FKR 600 P3 O-M18 Standard Optical sensors

OT 18 FKR 600 P3 O-M18 Standard Optical sensors

Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about OT 18 FKR 600 P3 O-M18 Standard Optical sensors

Description

Collapse all
Service voltage10 … 30 V DC
No-load current (max.)30 mA
ThreadM18 x 1
Housing length57.5 mm
Housing materialPlastic (ABS)
Material of cablePVC
MaterialPMMA (Window)
Protection classIII, operation on protective low voltage
Operating principleRetroreflective diffuse sensor
Evaluationdigital
DesignThread, Angled optics
Switching outputpnp, 100 mA, NO/NC
Light sourceLED
ColorInfrared
Wavelength880 nm
ModulationClocked
Ambient light immunity3 kLx Clocked light, 10 kLx Sunlight
Range600 mm
Standardized measuring plate200 x 200 mm
Sensitivity adjustmentPotentiometer
Switching frequency1000 Hz
Response time0.50 ms
Release time0.50 ms
Ambient temperature during operation-25 … +55 °C
Protection typeIP 67
ConnectionCable, 2.0 m
