Get more information about OT 18 FKR 600 P3-B4 O-M18 Standard Optical sensors

Description

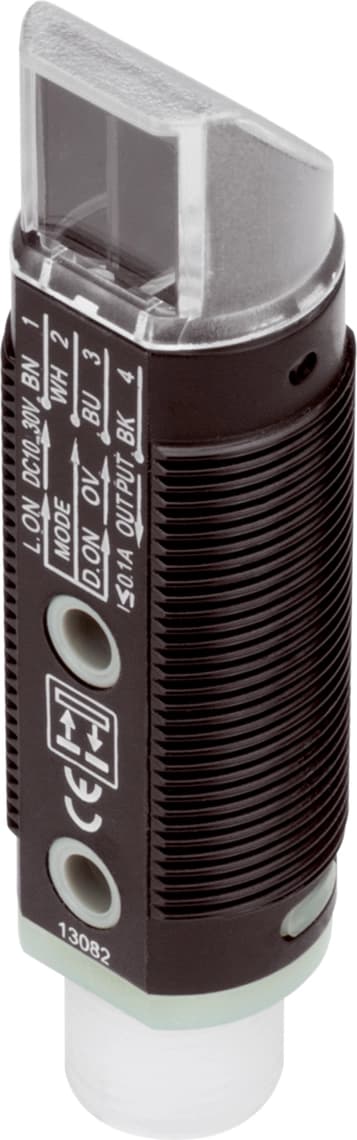

OT 18 FKR 600 P3-B4
Article Number: 207950

The light barriers and diffuse reflective sensors in the O-M18 Standard series are ideal devices for economical and cost-efficient applications. The sensors are alternatively available in a straight model or with 90° angled optics. The plastic or metallic housing is distinguished by its short construction.
Angled optics
Universal mounting options
Low installation depth
Sensitivity is adjustable
LED switching status display
Plastic housing

Collapse all
Service voltage10 … 30 V DC
No-load current (max.)30 mA
ThreadM18 x 1
Housing length67.5 mm
Housing materialPlastic (ABS)
MaterialPMMA (Window)
Protection classIII, operation on protective low voltage
Operating principleRetroreflective diffuse sensor
Evaluationdigital
DesignThread, Angled optics
Switching outputpnp, 100 mA, NO/NC
Light sourceLED
ColorInfrared
Wavelength880 nm
ModulationClocked
Ambient light immunity3 kLx Clocked light, 10 kLx Sunlight
Range600 mm
Standardized measuring plate200 x 200 mm
Sensitivity adjustmentPotentiometer
Switching frequency1000 Hz
Response time0.50 ms
Release time0.50 ms
Ambient temperature during operation-25 … +55 °C
Protection typeIP 67
ConnectionConnector, M12, 4-pin
