Description

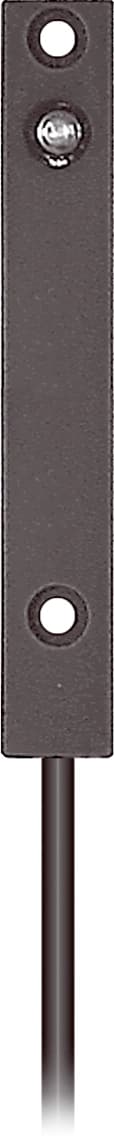

High performance light barrier OP-Q12

OSPQ 12 MLFL-5M
Article Number: 204154

The rectangular M12 model consists of a transmitter and receiver in a compact construction and simple threaded mounting. Through their robust stainless steel housing, the systems are insensitive to vibrations and shaking and therefore do not have to be continually adjusted.
Range up to 20 m
Transmit power with external resistance adjustable
High function reserve
Extremely dirt-resistant
Easy adjustment
Different designs to be combined
High protection type
Compact design

Collapse all
Service voltage10 … 35 V DC
No-load current (max.)55 mA
Housing dimensions82 x 12 x 12 mm
Housing length82 mm
Housing height12 mm
Housing width12 mm
Housing materialAluminum (Anodized)
Material of cablePVC
Protection classIII, operation on protective low voltage
Operating principleThrough-beam sensor, transmitter
Evaluationdigital
DesignCuboid design
CharacteristicsHigh transmit power and dirt penetration
Consisting ofTransmitter
Light sourceLED
ColorInfrared
Wavelength870 nm
ModulationClocked
Deflection angle FWHM15°
Range0 … 20000 mm (dependent on the receiver)
Sensitivity adjustmentno setting elements
Shock/vibration load30 g, 11 ms / 10 … 55 Hz, 2.0 mm
Ambient temperature during operation-20 … +60 °C
Protection typeIP 67
ConnectionCable, 5.0 m
