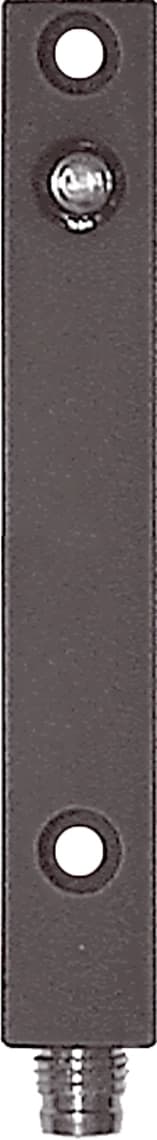

OSPQ 12 MHF-TSSL OP-Q12 Optical sensors

Di-soric Optical sensors Industrial Automation - OSPQ 12 MHF-TSSL OP-Q12 Optical sensors

OSPQ 12 MHF-TSSL OP-Q12 Optical sensors

Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about OSPQ 12 MHF-TSSL OP-Q12 Optical sensors

Description

Collapse all
Service voltage10 … 35 V DC
No-load current (max.)55 mA
Housing dimensions82 x 12 x 12 mm
Housing length82 mm
Housing height12 mm
Housing width12 mm
Housing materialAluminum (Anodized)
Protection classIII, operation on protective low voltage
Operating principleThrough-beam sensor, transmitter
Evaluationdigital
DesignCuboid design
CharacteristicsHigh transmit power and dirt penetration
Consisting ofTransmitter
Light sourceLED
ColorInfrared
Wavelength870 nm
ModulationClocked
Deflection angle FWHM6°
Range0 … 50000 mm (dependent on the receiver)
Sensitivity adjustmentno setting elements
Shock/vibration load30 g, 11 ms / 10 … 55 Hz, 2.0 mm
Ambient temperature during operation-20 … +60 °C
Protection typeIP 67
ConnectionConnector, M8, 3-pin
