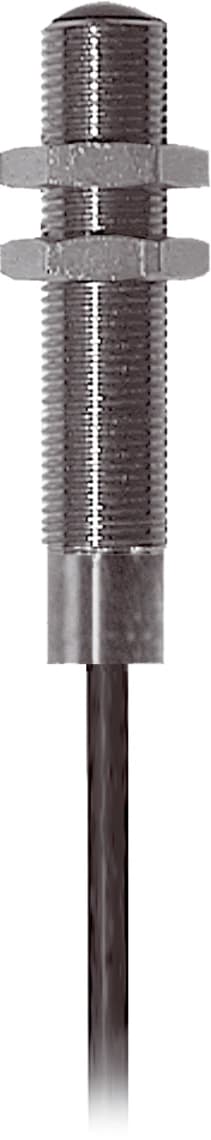

OSP 12 VHFL-5M OP-M12 Optical sensors

Di-soric Optical sensors Industrial Automation - OSP 12 VHFL-5M OP-M12 Optical sensors

OSP 12 VHFL-5M OP-M12 Optical sensors

Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about OSP 12 VHFL-5M OP-M12 Optical sensors

Description

Collapse all
Service voltage10 … 35 V DC
No-load current (max.)55 mA
ThreadM12 x 1
Housing length60 mm
Housing materialStainless steel (V2A 1.4301 / AISI 304)
Material of cablePVC
Protection classIII, operation on protective low voltage
Operating principleThrough-beam sensor, transmitter
Evaluationdigital
DesignThread
CharacteristicsHigh transmit power and dirt penetration
Consisting ofTransmitter
Light sourceLED
ColorInfrared
Wavelength870 nm
ModulationClocked
Deflection angle FWHM6°
Range0 … 50000 mm (dependent on the receiver)
Sensitivity adjustmentno setting elements
Shock/vibration load30 g, 11 ms / 10 … 55 Hz, 2.0 mm
Ambient temperature during operation-20 … +60 °C
Protection typeIP 67 / IP 68 / IP 69K
ConnectionCable, 5.0 m
