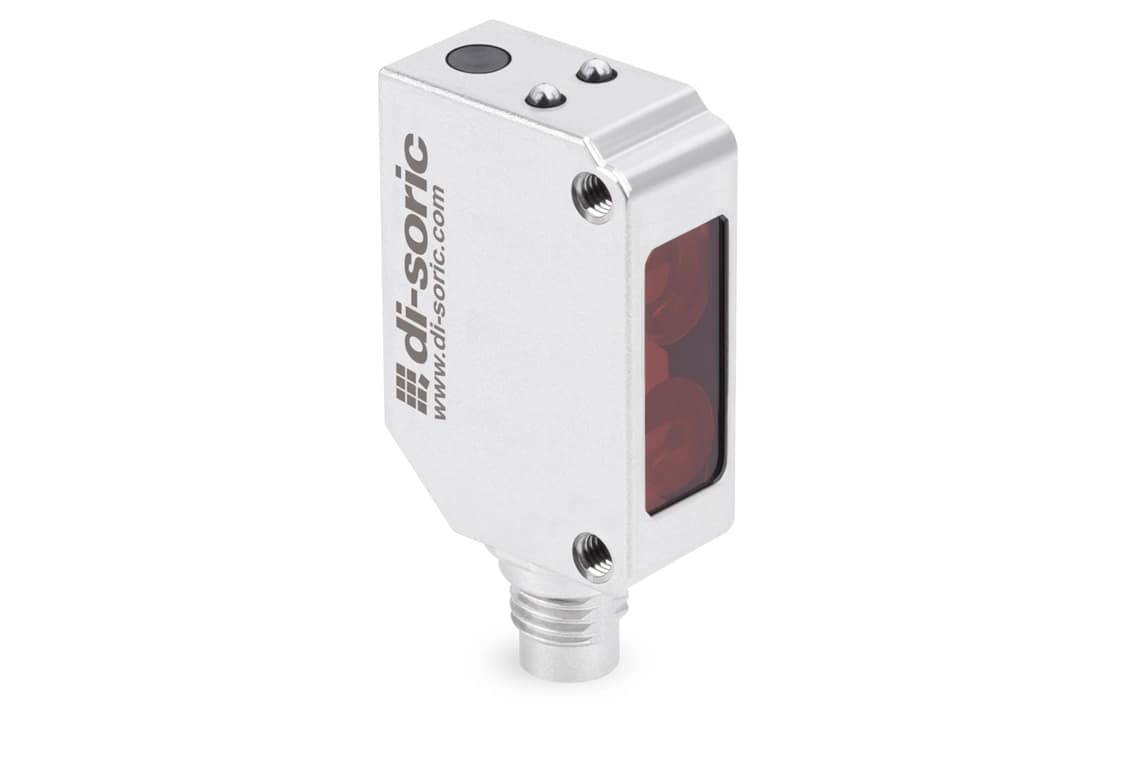

OS34-IMN-T4 O-34 Stainless steel Optical sensors

Di-soric Optical sensors Industrial Automation - OS34-IMN-T4 O-34 Stainless steel Optical sensors

OS34-IMN-T4 O-34 Stainless steel Optical sensors

Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about OS34-IMN-T4 O-34 Stainless steel Optical sensors

Description

Collapse all
Service voltage10 … 30 V DC
No-load current (max.)< 20 mA
Inverse polarity protectionYes
Short-circuit protectionYes
Housing dimensions32 x 21 x 11 mm
Housing length21 mm
Housing height32 mm
Housing width11 mm
Housing materialStainless steel
MaterialPlastic (Window / optics)
Weight65 g
Protection classIII
ApprovalsUL
Operating principleThrough-beam sensor
Evaluationdigital
DesignCuboid design
Consisting ofTransmitter
Voltage drop (max.)1 V
Light sourceLED
ColorInfrared
Wavelength850 nm
Light spot sizeØ 110 mm (at distance of 1500 mm)
Range0 … 15000 mm
DisplayLED green - Status
Ambient temperature during operation-25 … +60 °C
Protection typeIP 67 / IP 69K
ConnectionConnector, M8, 4-pin
Connection cableTK … /4
