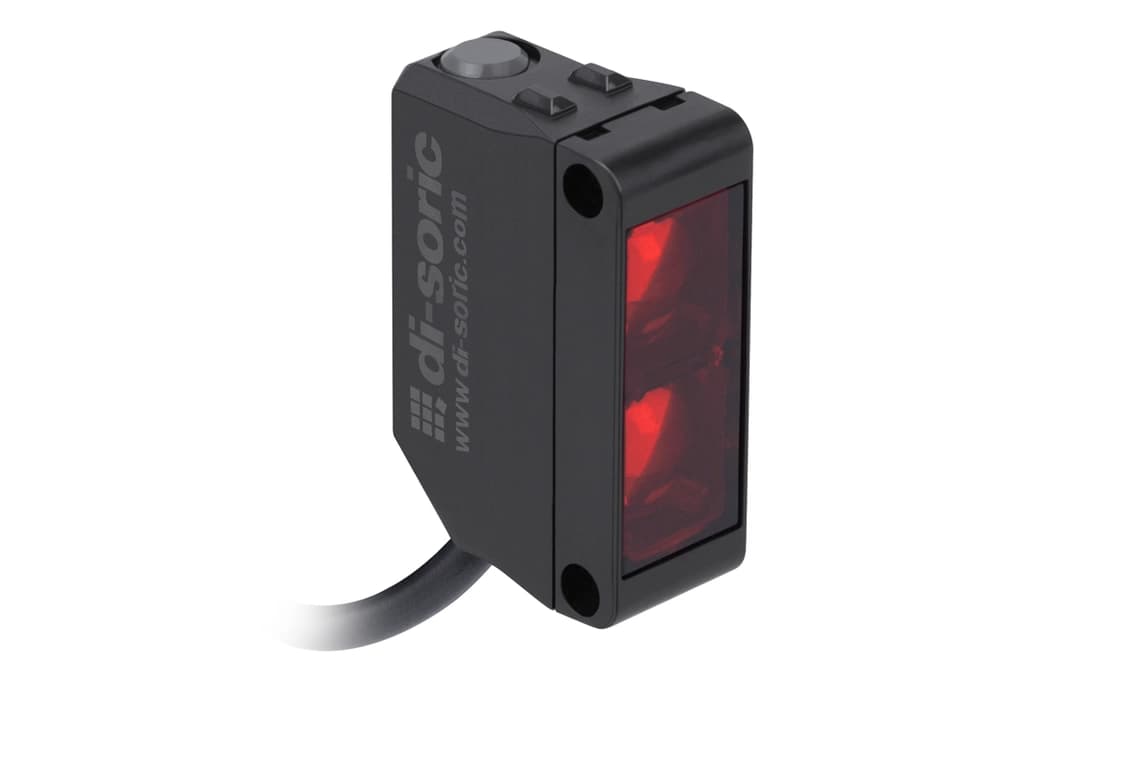

OS33-IMN-2C O-33 Universal Optical sensors

Di-soric Optical sensors Industrial Automation - OS33-IMN-2C O-33 Universal Optical sensors

OS33-IMN-2C O-33 Universal Optical sensors

Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about OS33-IMN-2C O-33 Universal Optical sensors

Description

Collapse all
Service voltage10 … 30 V DC
No-load current (max.)< 20 mA
Inverse polarity protectionYes
Short-circuit protectionYes
Housing dimensions31 x 20 x 11 mm
Housing length20 mm
Housing height31 mm
Housing width11 mm
Housing materialPlastic
Material of cablePVC
MaterialPlastic (Window / optics)
Weight50 g
Protection classIII
ApprovalsUL
Operating principleThrough-beam sensor
Evaluationdigital
DesignCuboid design
Consisting ofTransmitter
Voltage drop (max.)1 V
Light sourceLED
ColorInfrared
Wavelength850 nm
Range0 … 15000 mm
Sensitivity adjustmentno setting elements
DisplayLED green - Status
Ambient temperature during operation-25 … +60 °C
Protection typeIP 67
ConnectionCable, 2.0 m, 4-pin (flying leads)
