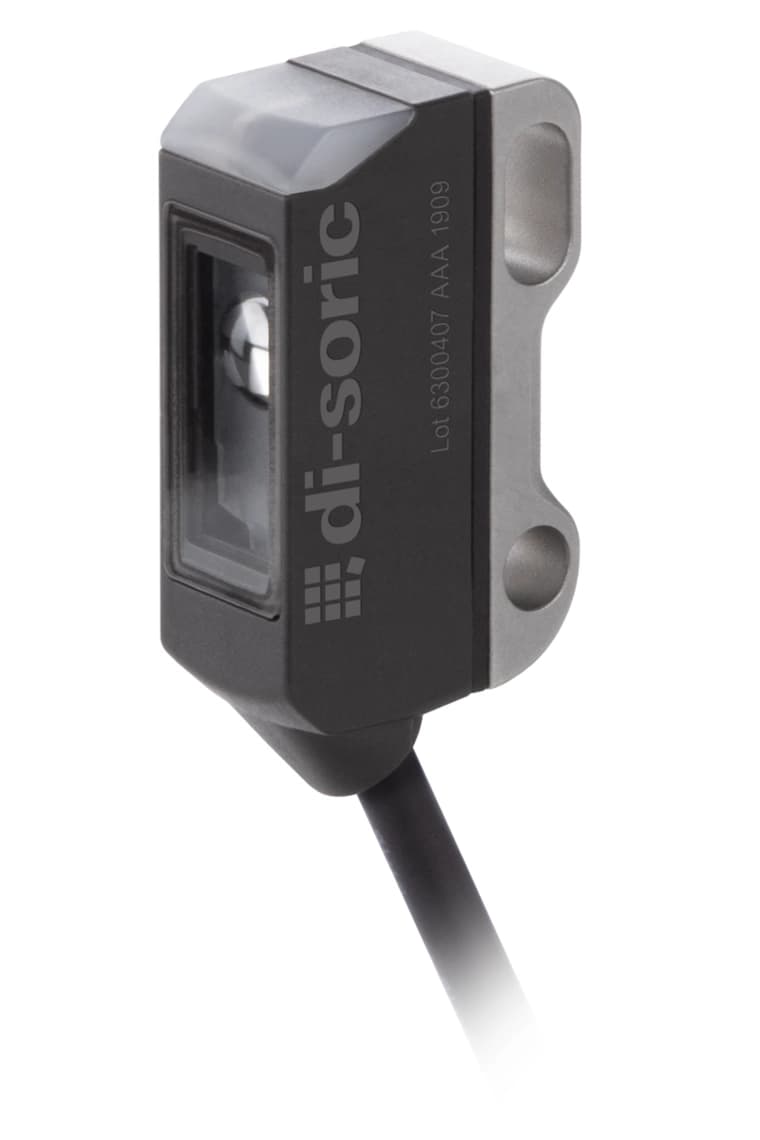

OS21-0.3T3 O-21 Miniature Optical sensors

Di-soric Optical sensors Industrial Automation - OS21-0.3T3 O-21 Miniature Optical sensors
Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about OS21-0.3T3 O-21 Miniature Optical sensors

Description

OS21-0.3T3
Article Number: 212990

The very small and efficient light barriers and sensors in the O-21 miniature series with IO-Link can be easily integrated. The retroreflective sensors with background suppression are suited for detecting small and flat objects. The retroreflective sensors feature a high functional reserve.
Miniature design
Mounting element made of metal
Long range

Collapse all
Service voltage10 … 30 V DC
No-load current (max.)15 mA
Inverse polarity protectionYes
Housing dimensions28.1 x 14.4 x 8.1 mm
Housing length14.4 mm
Housing height28.1 mm
Housing width8.1 mm
Housing materialStainless steel / Plastic
Material of cablePVC
MaterialPlastic (Window / optics)
Weight21 g
Protection classIII, operation on protective low voltage
ApprovalsUL
Operating principleThrough-beam sensor
Evaluationdigital
DesignCuboid design
Consisting ofTransmitter
Light sourceLED
ColorRed
Wavelength633 nm
ModulationClocked
Light spot sizeØ 200 mm (at distance of 3000 mm)
Range3000 mm
Sensitivity adjustmentno setting elements
DisplayLED green - Status
Ambient temperature during operation-25 … +60 °C
Protection typeIP 65 / IP 67
ConnectionPigtail, 0.3 m, M8, 3-pin
Connection cableTK …
