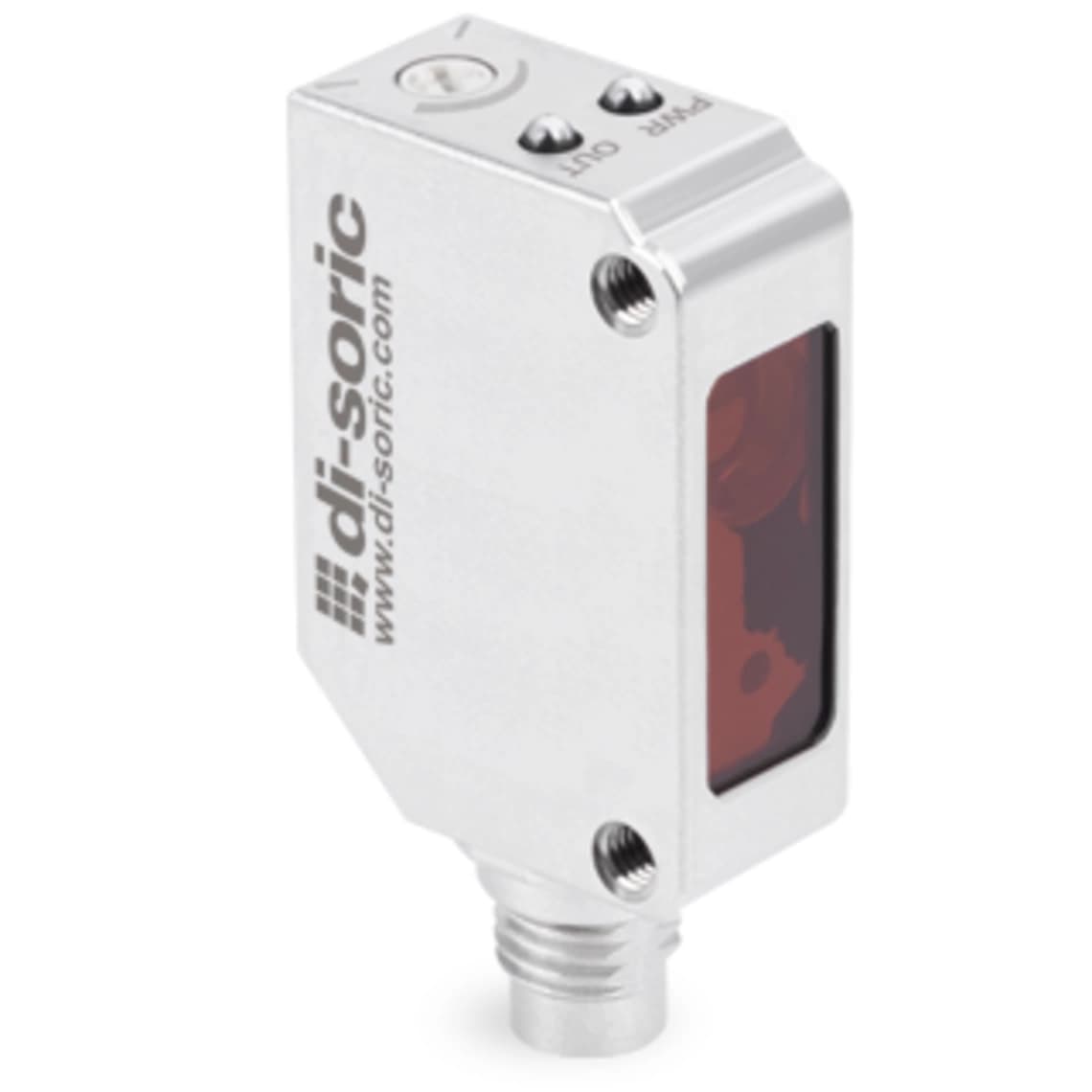

OR34-RMN-PT-G3-T4 O-34 Stainless steel Optical sensors

Di-soric Optical sensors Industrial Automation - OR34-RMN-PT-G3-T4 O-34 Stainless steel Optical sensors
Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about OR34-RMN-PT-G3-T4 O-34 Stainless steel Optical sensors

Description

OR34-RMN-PT-G3-T4
Article Number: 214914

The compact O-34 series photoelectric sensors and light barriers, housed in robust stainless steel casings, are IP69K waterproof and chemically resistant, reliably and precisely handling even the most demanding detection tasks.

The sensors feature an IO-Link interface and are optionally equipped with powerful laser or LED light sources, enabling a long detection range and high operational reserves.

Compact stainless steel housing
Protection class IP 69K
ECOLAB approval
Long range
Ideal background suppression
LED red light with large light spot
Push-pull output with pnp or npn function
Switch for light/dark switching
IO-Link

Collapse all
Service voltage10 … 30 V DC
No-load current (max.)< 30 mA
Inverse polarity protectionYes
Short-circuit protectionYes
Housing dimensions32 x 21 x 11 mm
Housing length21 mm
Housing height32 mm
Housing width11 mm
Housing materialStainless steel
MaterialPlastic (Window / optics)
Weight65 g
Protection classIII
ApprovalsUL
Operating principleRetroreflective sensor
Evaluationdigital
DesignCuboid design
Switching outputPush-pull, 100 mA, NO/NC, switchable
Voltage drop (max.)1 V
InterfaceIO-Link (V1.1, COM2 38.4 kBd, Smart Sensor Profile)
Light sourceLED
ColorRed
Wavelength620 nm
Light spot sizeØ 150 mm (at distance of 3000 mm)
Range100 … 6000 mm
Range during operation with3000 mm (R 42) 3500 mm (R 19 x 54) 2000 mm (RFP 50) 3000 mm (R 40x60-C)
Referring reflectorØ 84 mm, R 84
Sensitivity adjustmentPotentiometer or IO-Link
DisplayLED green - Status, yellow - Switching output 1
Switching frequency1000 Hz
Ambient temperature during operation-25 … +60 °C
Protection typeIP 67 / IP 69K
ConnectionConnector, M8, 4-pin
Connection cableTK … /4
