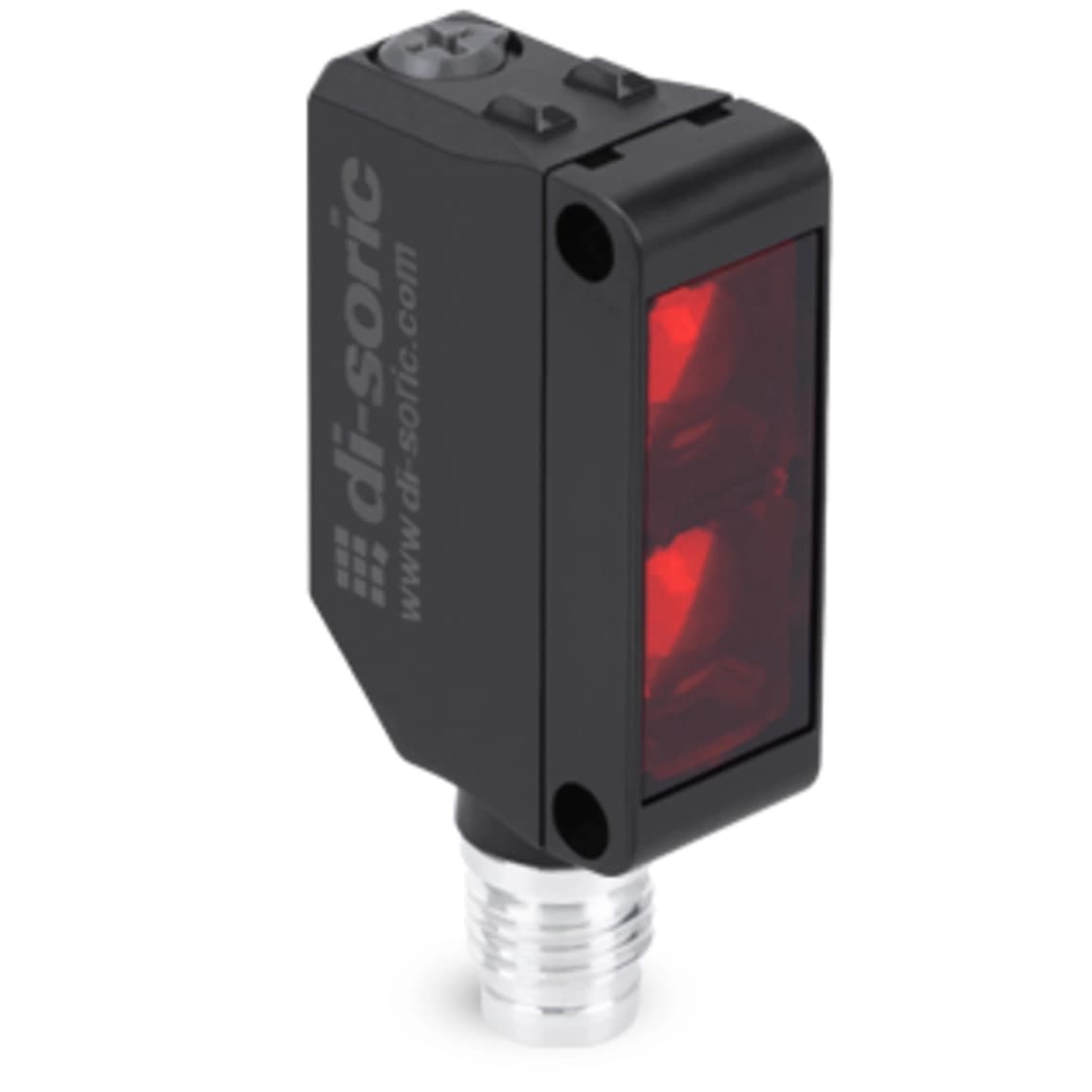

OR33-RSN-PT-G3-T4 O-33 Universal Optical sensors

Di-soric Optical sensors Industrial Automation - OR33-RSN-PT-G3-T4 O-33 Universal Optical sensors
Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about OR33-RSN-PT-G3-T4 O-33 Universal Optical sensors

Description

OR33-RSN-PT-G3-T4
Article Number: 214913

The compact O-33 series photoelectric sensors and light barriers, housed in robust plastic casings with IO-Link interfaces, reliably and precisely solve even the most demanding detection tasks.

The sensors feature an IO-Link interface and are optionally equipped with powerful laser or LED light sources, enabling a long range and high operational reserves.

Compact design
Long range
Push-pull output with pnp or npn function
Switch for light/dark switching
IO-Link
Measuring function

Collapse all
Service voltage10 … 30 V DC
No-load current (max.)< 30 mA
Inverse polarity protectionYes
Short-circuit protectionYes
Housing dimensions31 x 20 x 11 mm
Housing length20 mm
Housing height31 mm
Housing width11 mm
Housing materialPlastic
MaterialPlastic (Window / optics)
Weight20 g
Protection classIII
ApprovalsUL
Operating principleRetroreflective sensor
Evaluationdigital
DesignCuboid design
Switching outputPush-pull, 100 mA, NO/NC, switchable
Voltage drop (max.)1 V
InterfaceIO-Link (V1.1, COM2 38.4 kBd, Smart Sensor Profile)
Light sourceLED
ColorRed
Wavelength620 nm
Light spot sizeØ 95 mm (at distance of 2500 mm)
Range100 … 5000 mm
Range during operation with3000 mm (R 42) 1400 mm (R 19 x 54) 1500 mm (RFP 50)
Referring reflectorØ 84 mm, R 84
Sensitivity adjustmentPotentiometer or IO-Link
DisplayLED green - Status, yellow - Switching output 1
Switching frequency1000 Hz
Ambient temperature during operation-25 … +60 °C
Protection typeIP 67
ConnectionConnector, M8, 4-pin
Connection cableTK … /4
