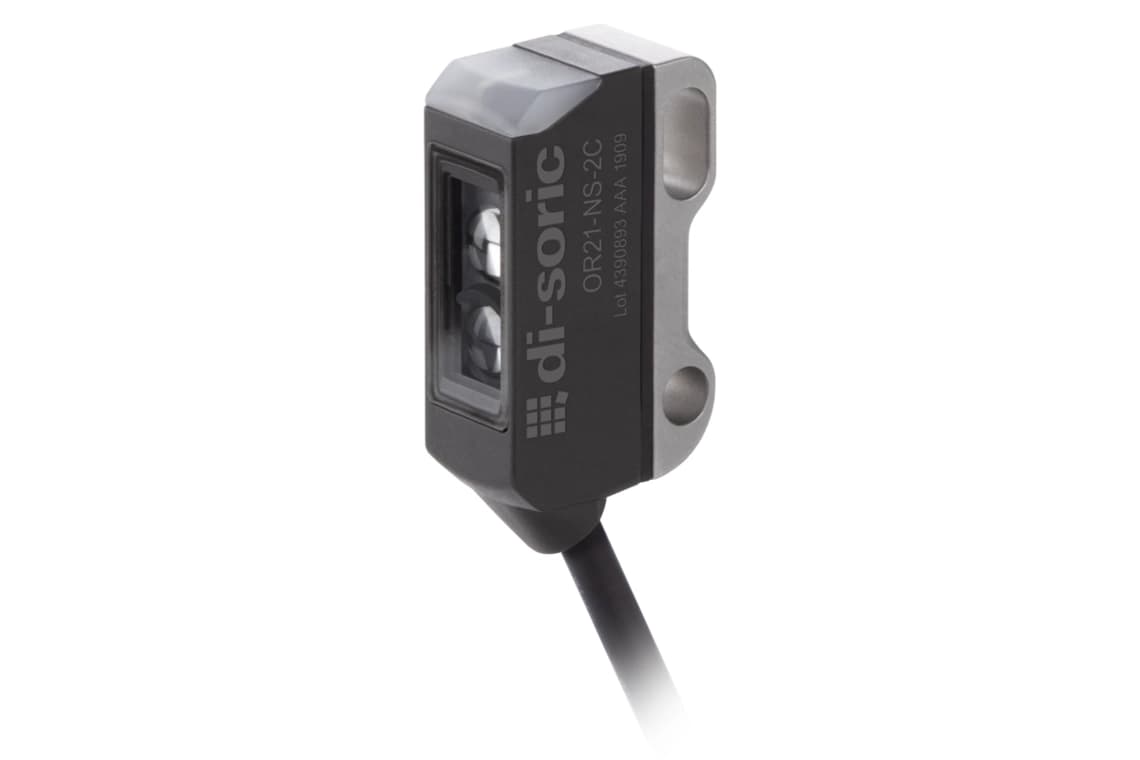

OR21-NS-2C O-21 Miniature Optical sensors

Di-soric Optical sensors Industrial Automation - OR21-NS-2C O-21 Miniature Optical sensors
Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about OR21-NS-2C O-21 Miniature Optical sensors

Description

OR21-NS-2C
Article Number: 212986

The very small and efficient light barriers and sensors in the O-21 miniature series with IO-Link can be easily integrated. The retroreflective sensors with background suppression are suited for detecting small and flat objects. The retroreflective sensors feature a high functional reserve.
Miniature design
Mounting element made of metal
High switching frequency
Long range

Collapse all
Service voltage10 … 30 V DC
No-load current (max.)20 mA
Inverse polarity protectionYes
Housing dimensions28.1 x 14.4 x 8.1 mm
Housing length14.4 mm
Housing height28.1 mm
Housing width8.1 mm
Housing materialStainless steel / Plastic
Material of cablePVC
MaterialPlastic (Window / optics)
Weight37 g
Protection classIII, operation on protective low voltage
ApprovalsUL
Operating principleRetroreflective sensor
Evaluationdigital
DesignCuboid design
Switching outputnpn, 100 mA, NO
Voltage drop (max.)2.5 V
Light sourceLED
ColorRed
Wavelength633 nm
ModulationClockedLight spot size
Range20 … 1800 mm
Range during operation with4000 mm (R 84) 2100 mm (R 42) 1000 mm (RFP 50) 700 mm (R 21 M3)
Referring reflectorR 19 x 54 mm
Sensitivity adjustmentno setting elements
DisplayLED green - Operation, yellow - Switching output
Switching frequency1000 Hz
Ambient temperature during operation-25 … +60 °C
Protection typeIP 65 / IP 67
ConnectionCable, 2.0 m, 3-pin
