Description

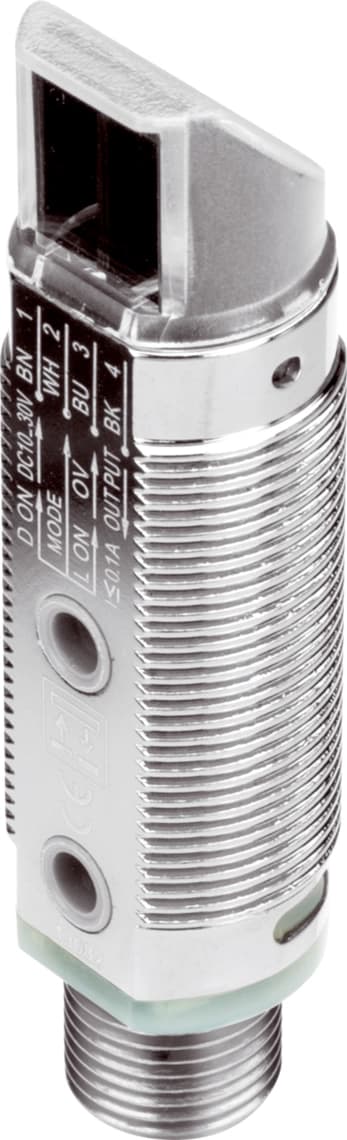

OR 18-1 FMR 3600 P3-B4
Article Number: 207970

The light barriers and diffuse reflective sensors in the O-M18 Standard series are ideal devices for economical and cost-efficient applications. The sensors are alternatively available in a straight model or with 90° angled optics. The plastic or metallic housing is distinguished by its short construction.
Angled optics
Universal mounting options
Low installation depth
Sensitivity is adjustable
LED switching status display
Metal casing

Collapse all
Service voltage10 … 30 V DC
No-load current (max.)30 mA
ThreadM18 x 1
Housing length67.5 mm
Housing materialMetal
MaterialPMMA (Window)
Protection classIII, operation on protective low voltage
Operating principleRetroreflective sensor
Evaluationdigital
DesignThread, Angled optics
Scope of deliverySensor, Reflector R55
Switching outputpnp, 100 mA, NO/NC
Voltage drop (max.)2 V
Light sourceLED
ColorRed
Wavelength660 nm
ModulationClocked
Ambient light immunity3 kLx Clocked light, 10 kLx Sunlight
Range4000 mm
Range during operation with1800 mm (R55) 3600 mm (R 84) 4000 mm (R 100x100)
Referring reflector100 x 100 mm, R 100 x 100
Sensitivity adjustmentPotentiometer
Switching frequency1000 Hz
Response time0.50 ms
Release time0.50 ms
Ambient temperature during operation-25 … +55 °C
Protection typeIP 67
ConnectionConnector, M12, 4-pin
