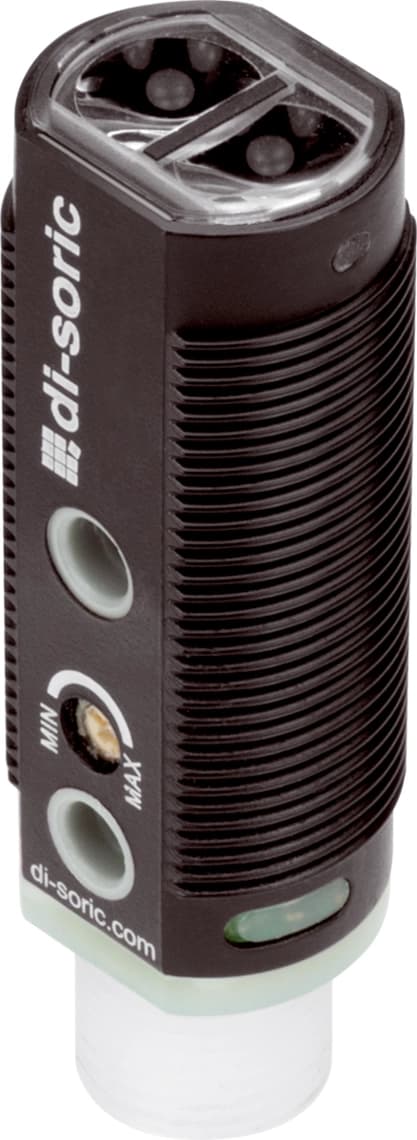

OR 18-1 FK 5700 N3-B4 O-M18 Standard Optical sensors

Di-soric Optical sensors Industrial Automation - OR 18-1 FK 5700 N3-B4 O-M18 Standard Optical sensors

OR 18-1 FK 5700 N3-B4 O-M18 Standard Optical sensors

Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about OR 18-1 FK 5700 N3-B4 O-M18 Standard Optical sensors

Description

Collapse all
Service voltage10 … 30 V DC
No-load current (max.)30 mA
ThreadM18 x 1
Housing length54.5 mm
Housing materialPlastic (ABS)
MaterialPMMA (Window)
Protection classIII, operation on protective low voltage
Operating principleRetroreflective sensor
Evaluationdigital
DesignThread
Scope of deliverySensor, Reflector R55
Switching outputnpn, 100 mA, NO/NC
Voltage drop (max.)2 V
Light sourceLED
ColorRed
Wavelength660 nm
ModulationClocked
Ambient light immunity3 kLx Clocked light, 10 kLx Sunlight
Range5000 mm
Range during operation with2000 mm (R55) 4500 mm (R 84) 5000 mm (R 100x100)
Referring reflector100 x 100 mm, R 100 x 100
Sensitivity adjustmentPotentiometer
Switching frequency1000 Hz
Response time0.50 ms
Release time0.50 ms
Ambient temperature during operation-25 … +55 °C
Protection typeIP 67
ConnectionConnector, M12, 4-pin
