Description

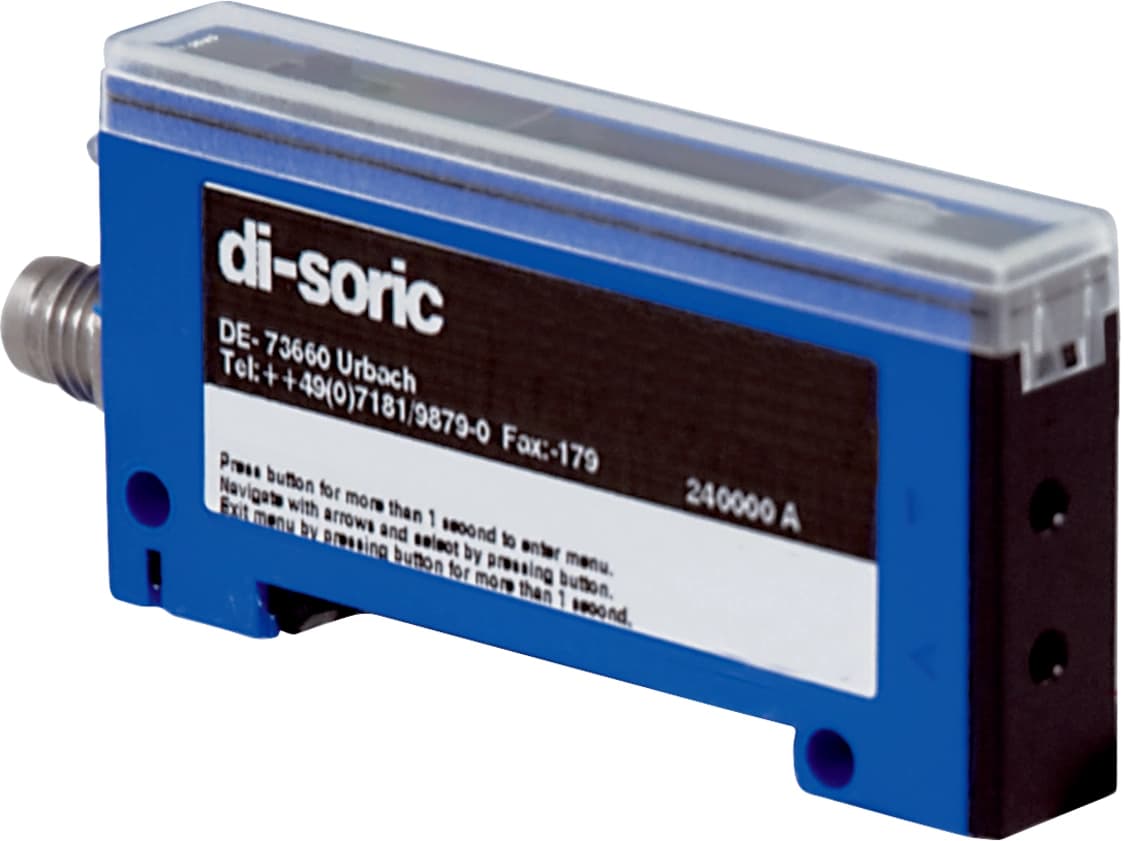

Amplifier OLV-K

OLVK 61 P3K-TSSL/3
Article Number: 202652

Our fiber-optic amplifiers are easy to operate and yet offer maximum control. These very high performance, efficient amplifiers are distinguished by very long ranges, time functions and simple operation.
DIN-rail mounting and lateral mounting holes
Mountable side by side, 10 mm mounting grid
12-turn metal potentiometer with illuminated readout
Scanning range up to 200 mm, range up to 1500 mm
Version with function reserve output
Switch for light/dark switching

Collapse all
Service voltage10 … 30 V DC (Supply Class 2)
No-load current (max.)15 mA
Insulation voltage endurance5000 V
Housing length60 mm
Housing height31.1 mm
Housing width10 mm
Housing materialPlastic (PBT)
Protection classIII, operation on protective low voltage
Amplifier for2X2.2 mm plastic fiber optics
Evaluationdigital
DesignCuboid design
Switching outputpnp, 200 mA, NO/NC, switchable
Voltage drop (max.)2 V
Light sourceLED
ColorRed
Wavelength680 nm
ModulationClocked
Ambient light immunity10 kLx
Switching hysteresis (max.)10 %
Sensitivity adjustmentPotentiometer
DisplayNo display
Switching frequency1500 Hz
Response time0.33 ms
Release time0.33 ms
Ambient temperature during operation-25 … +55 °C
Temperature drift0.2 %/K
Protection typeIP 64
ConnectionConnector, M8, 3-pin
