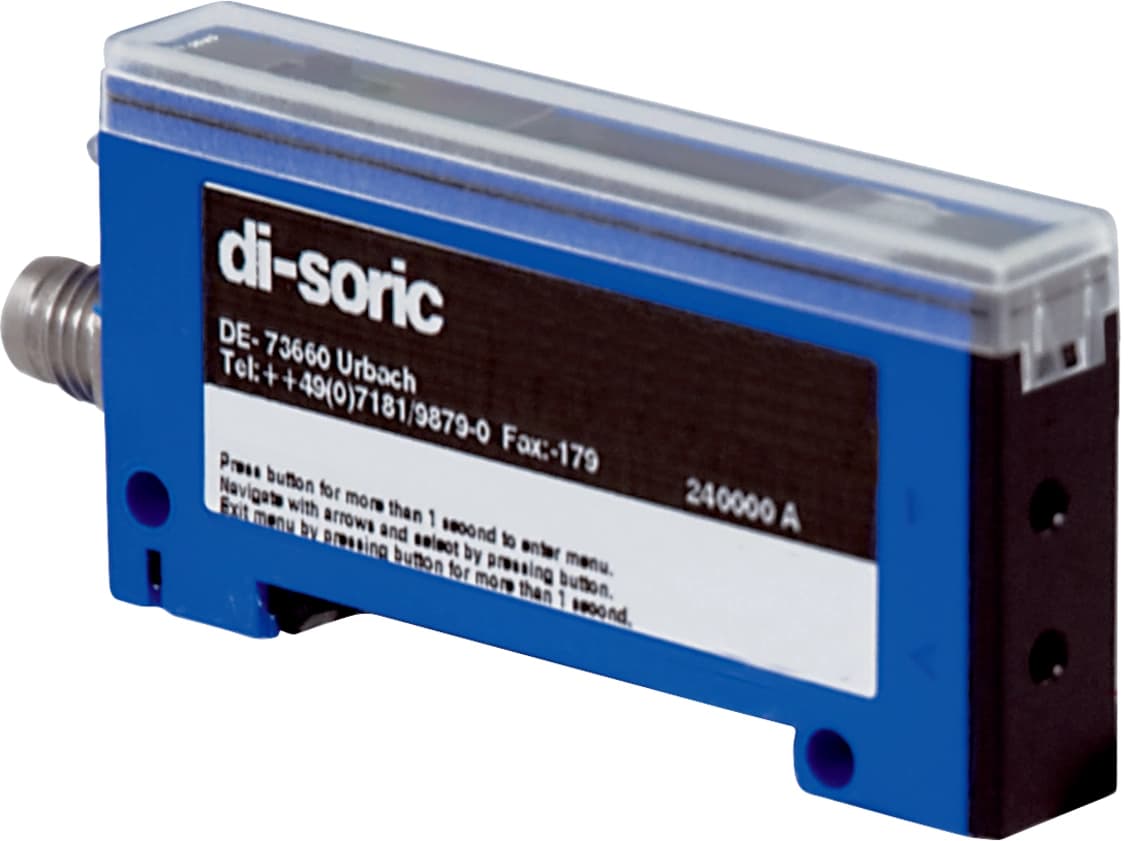

OLVK 61 P3FK-TSSL Potentiometer Optical sensors

Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about OLVK 61 P3FK-TSSL Potentiometer Optical sensors

Description

Collapse all
Service voltage10 … 30 V DC (Supply Class 2)
No-load current (max.)15 mA
Insulation voltage endurance5000 V
Housing length60 mm
Housing height31.1 mm
Housing width10 mm
Housing materialPlastic (PBT)
Protection classIII, operation on protective low voltage
Amplifier for2X2.2 mm plastic fiber optics
Evaluationdigital
DesignCuboid design
Switching outputpnp, 200 mA, NO/NC, switchable
Voltage drop (max.)2 V
Light sourceLED
ColorRed
Wavelength680 nm
ModulationClocked
Ambient light immunity10 kLx
Switching hysteresis (max.)10 %
Sensitivity adjustmentPotentiometer
DisplayNo display
Switching frequency1500 Hz
Response time0.33 ms
Release time0.33 ms
Ambient temperature during operation-25 … +55 °C
Temperature drift0.2 %/K
Protection typeIP 64
ConnectionConnector, M8, 4-pin
