Description

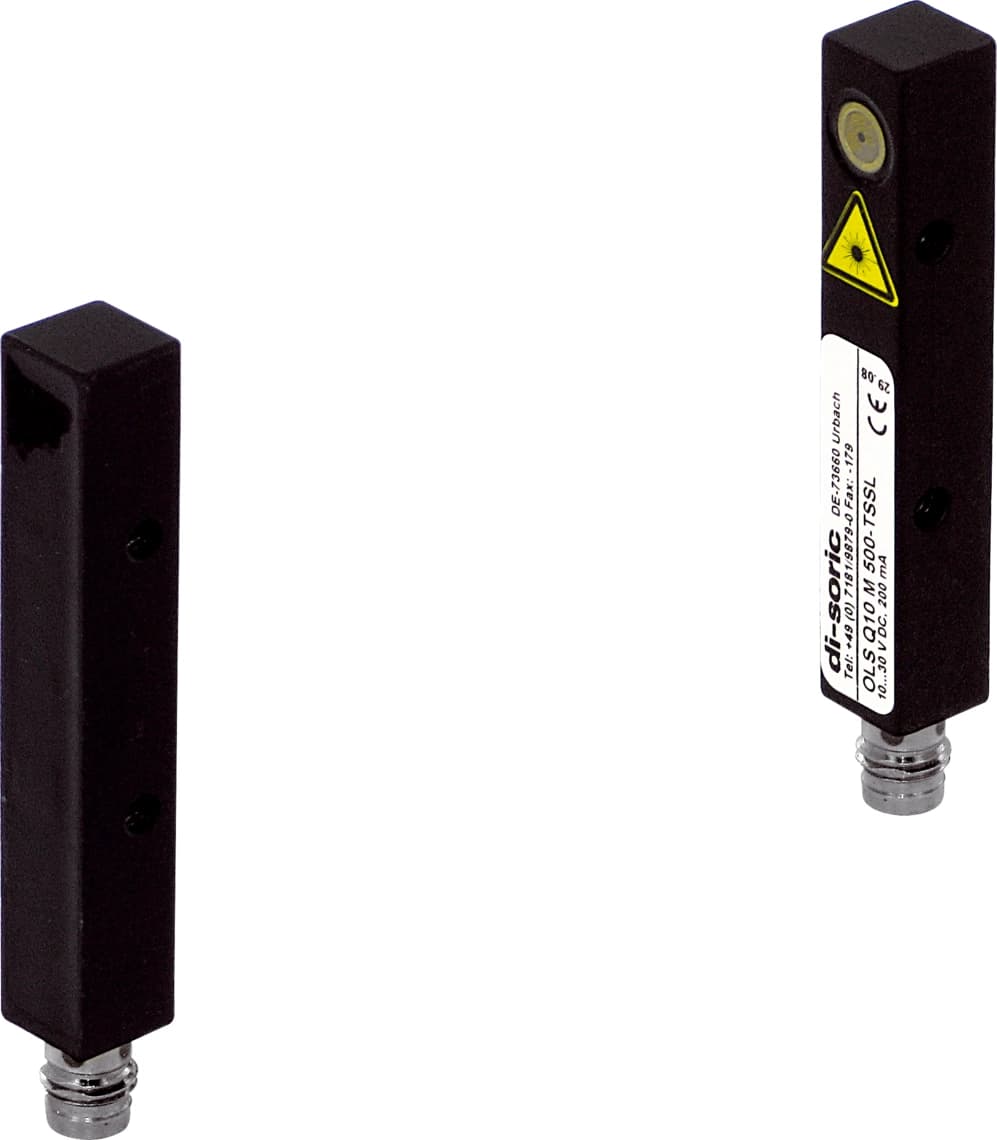

Laser through-beam sensor O-Q10

OLS Q10 M 500-TSSL
Article Number: 202934

The devices in O-Q10 Miniature series are the first choice for applications that require compact laser through-beam sensors for small parts detection. These robust devices with a metallic housing and metal plug conform to the safe laser protection class 1.
Collimated red-light laser
Visible laser spot
Compact design
Robust metal housing

Collapse all
Service voltage10 … 35 V DC
No-load current (max.)30 mA
Insulation voltage endurance500 V
Housing dimensions60 x 10 x 10 mm
Housing length10 mm
Housing height60 mm
Housing width10 mm
Housing materialDie-cast zinc (Black, painted)
MaterialGlass (Window)
Protection classIII, operation on protective low voltage
Operating principleThrough-beam sensor
Evaluationdigital
DesignCuboid design
Consisting ofTransmitter
Voltage drop (max.)2.5 V
Light sourceLaser
Laser classCLASS 1 LASER PRODUCT, (IEC 60825-1:2014 / EN 60825-1:2014)
ColorRed
Wavelength650 nm (Pp < 1.1 mW t = 6 µs)
ModulationClocked
Laser beam divergence2 mrad
Laser direction error< 10 mrad
Range0 … 500 mm
Sensitivity adjustmentno setting elements
Switching frequency2000 Hz
Ambient temperature during operation0 … +50 °C
Protection typeIP 67
ConnectionConnector, M8, 3-pin
Connection cableTK …
