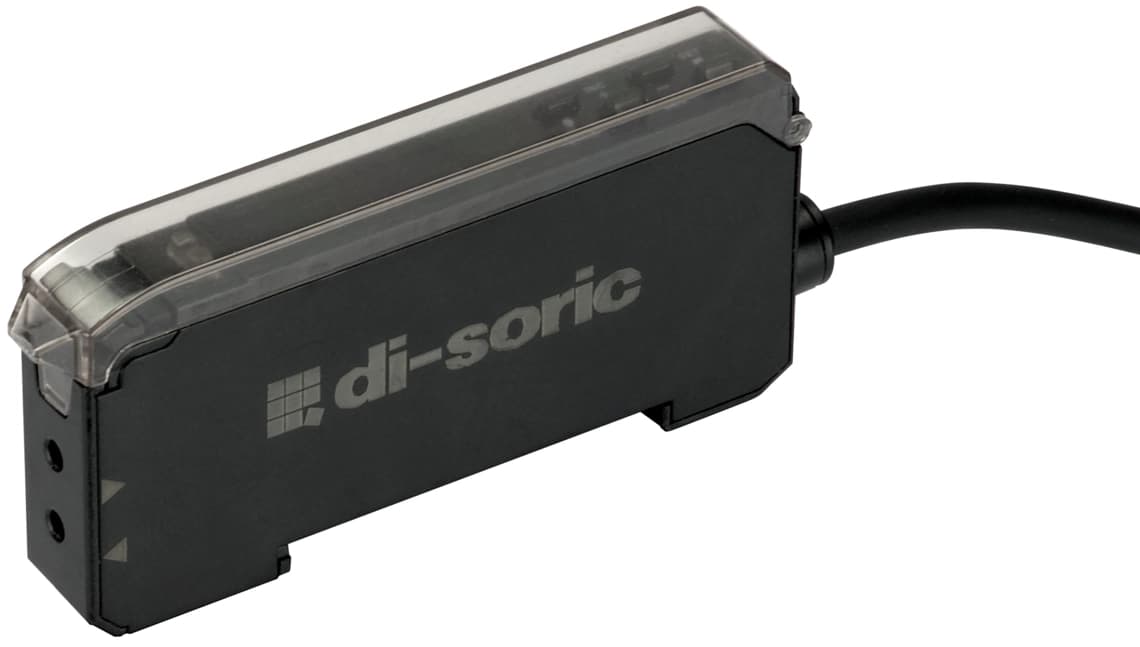

OLK 71 P3-3 Teach button Optical sensors

Di-soric Optical sensors Industrial Automation - OLK 71 P3-3 Teach button Optical sensors

OLK 71 P3-3 Teach button Optical sensors

Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about OLK 71 P3-3 Teach button Optical sensors

Description

Collapse all
Service voltage12 … 24 V DC (± 10%)
No-load current (max.)40 mA
Insulation voltage endurance1000 V
Housing length69 mm
Housing height33.4 mm
Housing width10.5 mm
Housing materialPlastic (ABS) / Plastic (PC)
Protection classIII, operation on protective low voltage
Amplifier for2X2.2 mm plastic fiber optics
Evaluationdigital
DesignCuboid design
Switching outputpnp, 100 mA, NO/NC, programmable
Light sourceLED
ColorRed
Wavelength625 nm
Ambient light immunity10 kLx
Operating elements4
Sensitivity adjustmentTeach button
DisplayDigital display
Switching frequency1000 Hz / 800 Hz / 600 Hz / 400 Hz / 200 Hz
Response time0.25 / 0.31 / 0.42 / 0.63 / 1.25 ms
Ambient temperature during operation-10 … +55 °C
Protection typeIP 54
ConnectionCable, 2.0 m
