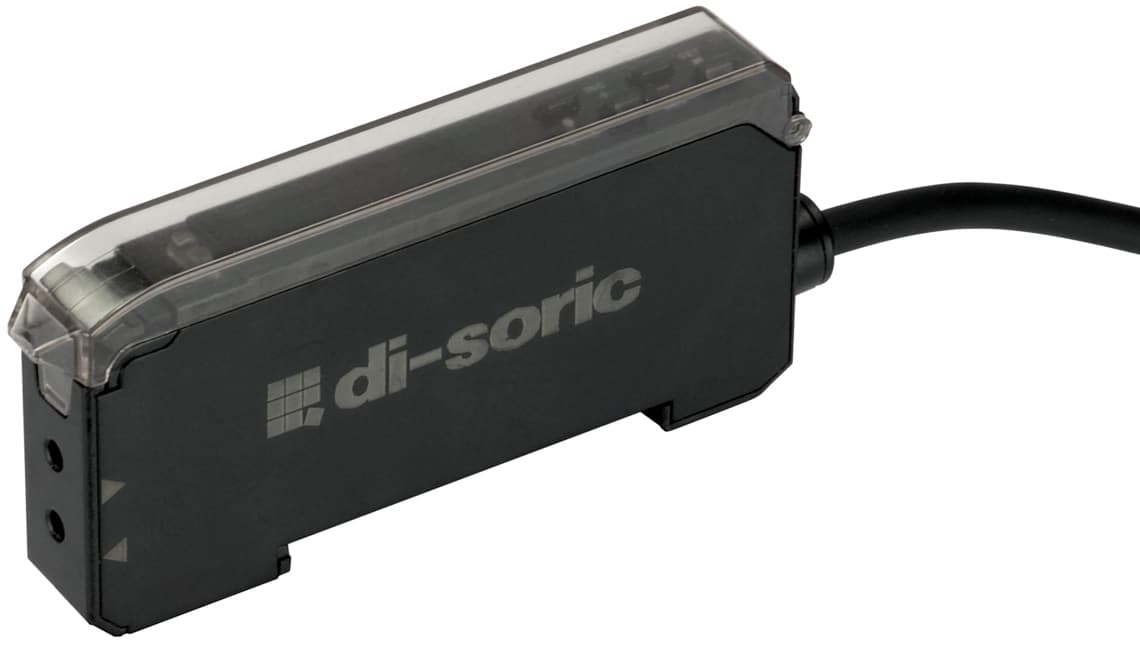

OLK 71 N3-3 Teach button Optical sensors

Di-soric Optical sensors Industrial Automation - OLK 71 N3-3 Teach button Optical sensors
Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about OLK 71 N3-3 Teach button Optical sensors

Description

Amplifier OLV-K

OLK 71 N3-3
Article Number: 209977

Our fiber-optic amplifiers are easy to operate and yet offer maximum control. These very high performance, efficient amplifiers are distinguished by very long ranges, time functions and simple operation.
Long range
Easy to operate
Two digital LED displays for the target value and actual value
Teach-in / fine manual adjustment
Time function / offset function
Switch for light/dark switching

Collapse all
Service voltage12 … 24 V DC (± 10%)
No-load current (max.)40 mA
Insulation voltage endurance1000 V
Housing length69 mm
Housing height33.4 mm
Housing width10.5 mm
Housing materialPlastic (ABS) / Plastic (PC)
Protection classIII, operation on protective low voltage
Amplifier for2X2.2 mm plastic fiber optics
Evaluationdigital
DesignCuboid design
Switching outputnpn, 100 mA, NO/NC, programmable
Light sourceLED
ColorRed
Wavelength625 nm
Ambient light immunity10 kLx
Operating elements4
Sensitivity adjustmentTeach button
DisplayDigital display
Switching frequency1000 Hz / 800 Hz / 600 Hz / 400 Hz / 200 Hz
Response time0.25 / 0.31 / 0.42 / 0.63 / 1.25 ms
Ambient temperature during operation-10 … +55 °C
Protection typeIP 54
ConnectionCable, 2.0 m
