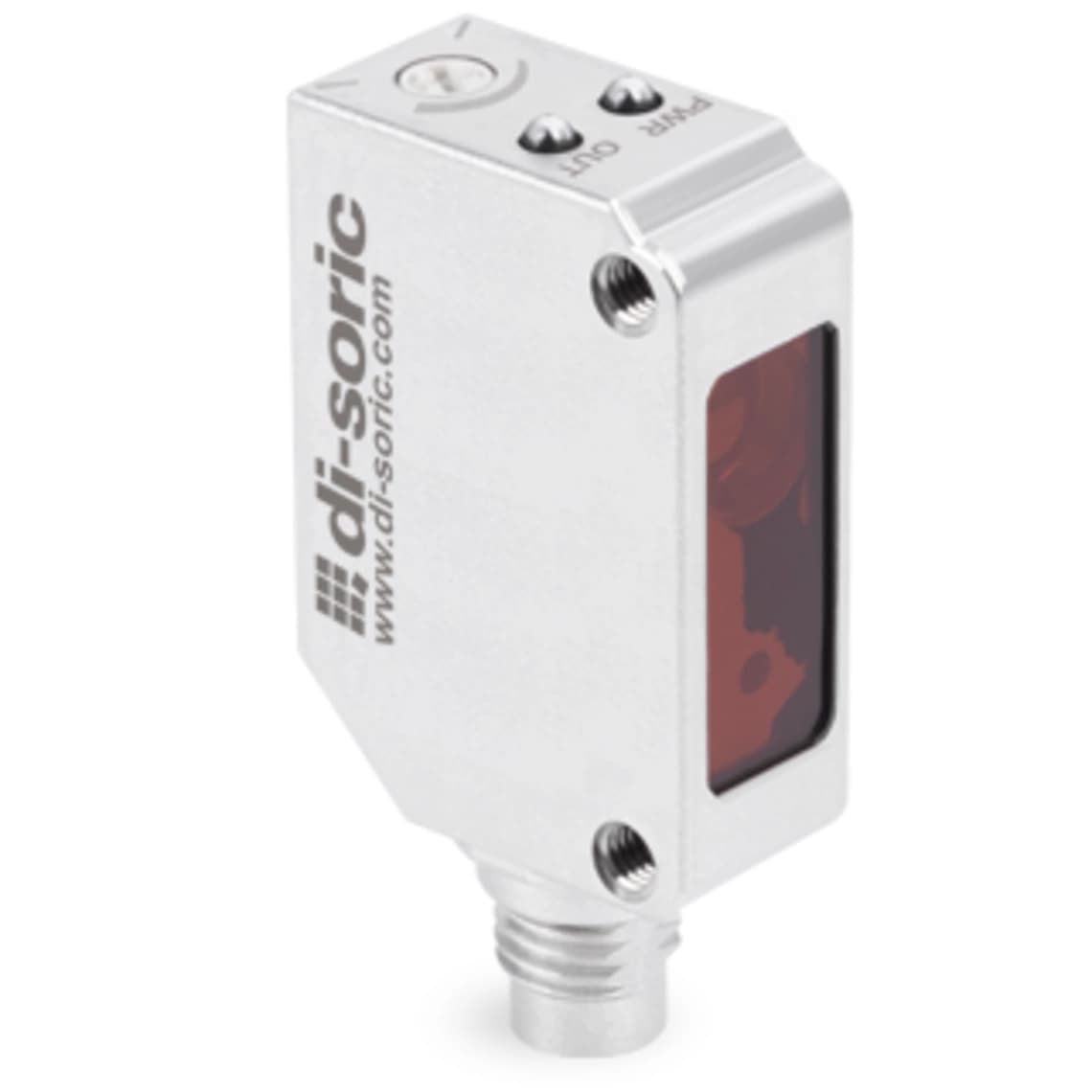

OH34-RMN-PT-G3-T4 O-34 Stainless steel Optical sensors

Di-soric Optical sensors Industrial Automation - OH34-RMN-PT-G3-T4 O-34 Stainless steel Optical sensors
Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about OH34-RMN-PT-G3-T4 O-34 Stainless steel Optical sensors

Description

OH34-RMN-PT-G3-T4
Article Number: 214908

The compact O-34 series photoelectric sensors and light barriers, housed in robust stainless steel casings, are IP69K waterproof and chemically resistant, reliably and precisely handling even the most demanding detection tasks.

The sensors feature an IO-Link interface and are optionally equipped with powerful laser or LED light sources, enabling a long detection range and high operational reserves.

Compact stainless steel housing
Protection class IP 69K
ECOLAB approval
Long range
Ideal background suppression
LED red light with large light spot
Push-pull output with pnp or npn function
Switch for light/dark switching
IO-Link
Sensing range and window function can be parameterized in mm

Collapse all
Service voltage10 … 30 V DC
No-load current (max.)< 35 mA
Inverse polarity protectionYes
Short-circuit protectionYes
Housing dimensions32 x 21 x 11 mm
Housing length21 mm
Housing height32 mm
Housing width11 mm
Housing materialStainless steel
MaterialPlastic (Window / optics)
Weight65 g
Protection classIII
ApprovalsUL
Operating principleDiffuse sensor with background suppression
Evaluationdigital
DesignCuboid design
WerkseinstellungSwitching frequency (500 Hz (STANDARD))
Switching outputPush-pull, 100 mA, NO/NC, switchable
Voltage drop (max.)1 V
InterfaceIO-Link (V1.1, COM2 38.4 kBd, Smart Sensor Profile)
Light sourceLED
ColorRed
Wavelength620 nm
Background suppressionYes
Light spot sizeØ 7 mm (at distance of 100 mm)
Range20 … 200 mm
Standardized measuring plate200 x 200 mm
Sensitivity adjustmentPotentiometer or IO-Link
DisplayLED green - Status, yellow - Switching output 1
Switching frequency50 Hz … 500 Hz (50 Hz (PRECISION))
Ambient temperature during operation-25 … +60 °C
Protection typeIP 67 / IP 69K
ConnectionConnector, M8, 4-pin
Connection cableTK … /4
