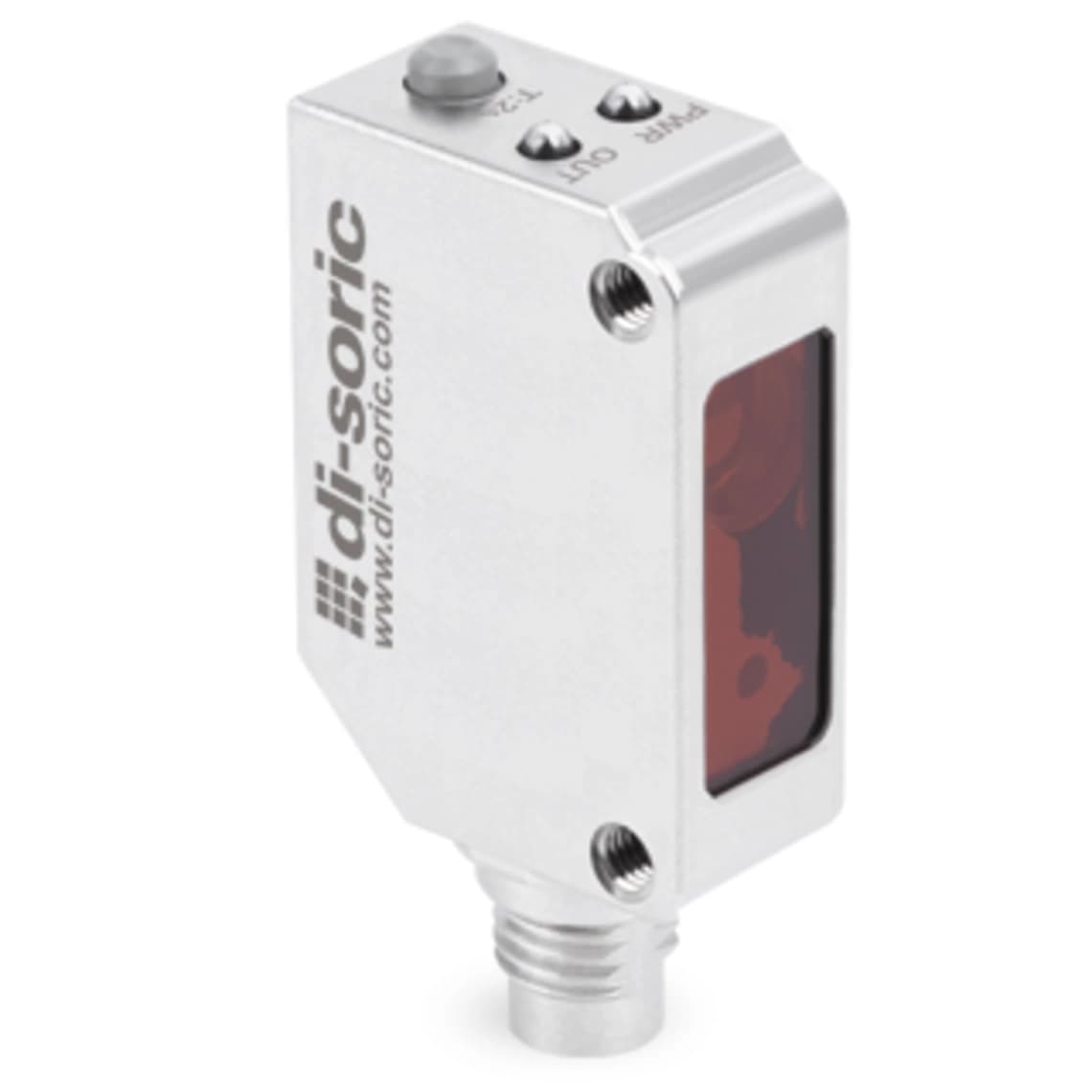

OH34-LRML-TI-G3-T4 O-34 Stainless steel Optical sensors

Di-soric Optical sensors Industrial Automation - OH34-LRML-TI-G3-T4 O-34 Stainless steel Optical sensors

OH34-LRML-TI-G3-T4 O-34 Stainless steel Optical sensors

Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about OH34-LRML-TI-G3-T4 O-34 Stainless steel Optical sensors

Description

Collapse all
Service voltage10 … 30 V DC
No-load current (max.)< 30 mA
Inverse polarity protectionYes
Short-circuit protectionYes
Housing dimensions32 x 21 x 11 mm
Housing length21 mm
Housing height32 mm
Housing width11 mm
Housing materialStainless steel
MaterialPlastic (Window / optics)
Weight65 g
Protection classIII
ApprovalsUL
Operating principleDiffuse sensor with background suppression
Evaluationdigital
DesignCuboid design
WerkseinstellungSwitching frequency (40 Hz (PRECISION))
Switching outputPush-pull, 100 mA, NO/NC, switchable
Voltage drop (max.)1 V
InterfaceIO-Link (V1.1, COM2 38.4 kBd, Smart Sensor Profile)
Light sourceLaser
Laser classCLASS 1 LASER PRODUCT
ColorRed
Wavelength650 nm
Background suppressionYes
Light spot sizeØ 1 mm (at distance of 300 mm)
Range20 … 600 mm
Standardized measuring plate200 x 200 mm
Sensitivity adjustmentButton, IO-Link
DisplayLED green - Status, yellow - Switching output 1
Switching frequency40 Hz … 200 Hz (40 Hz (HIGH FUNCTIONAL RELIABILITY), 200 Hz (SPEED))
Ambient temperature during operation-25 … +60 °C
Protection typeIP 67 / IP 69K
ConnectionConnector, M8, 4-pin
Connection cableTK … /4
