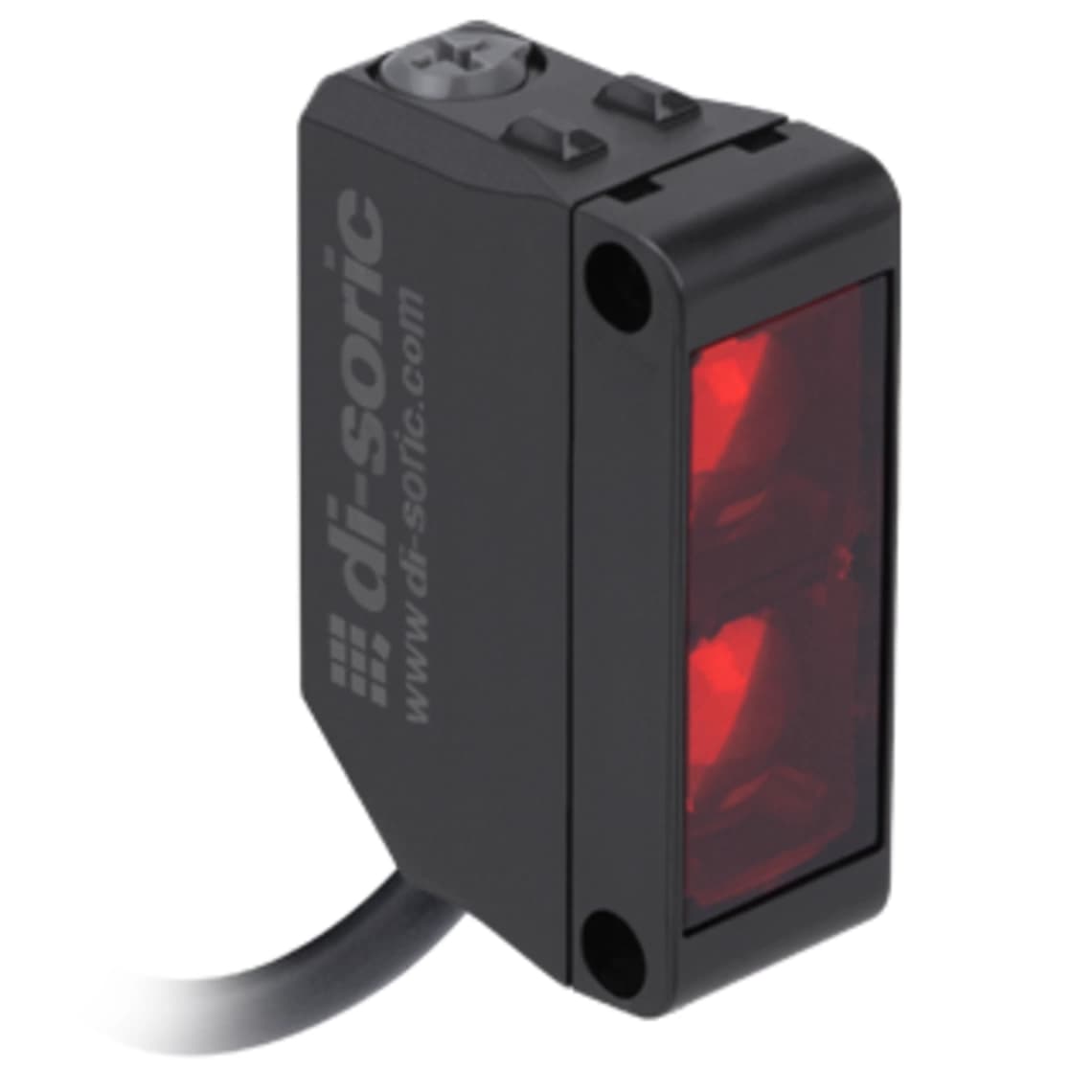

OH33-RMN-PT-G3-2C O-33 Universal Optical sensors

Di-soric Optical sensors Industrial Automation - OH33-RMN-PT-G3-2C O-33 Universal Optical sensors

OH33-RMN-PT-G3-2C O-33 Universal Optical sensors

Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about OH33-RMN-PT-G3-2C O-33 Universal Optical sensors

Description

Collapse all
Service voltage10 … 30 V DC
No-load current (max.)< 45 mA
Inverse polarity protectionYes
Short-circuit protectionYes
Housing dimensions31 x 20 x 11 mm
Housing length20 mm
Housing height31 mm
Housing width11 mm
Housing materialPlastic
Material of cablePVC
MaterialPlastic (Window / optics)
Weight50 g
Protection classIII
ApprovalsUL
Operating principleDiffuse sensor with background suppression
Evaluationdigital
DesignCuboid design
WerkseinstellungSwitching frequency (500 Hz (STANDARD))
Switching outputPush-pull, 100 mA, NO/NC, switchable
Voltage drop (max.)1 V
InterfaceIO-Link (V1.1, COM2 38.4 kBd, Smart Sensor Profile)
Light sourceLED
ColorRed
Wavelength620 nm
Background suppressionYes
Light spot sizeØ 7 mm (at distance of 100 mm)
Range20 … 200 mm
Standardized measuring plate200 x 200 mm (white)
Sensitivity adjustmentPotentiometer, IO-Link
DisplayLED green - Status, yellow - Switching output 1
Switching frequency50 Hz … 500 Hz (50 Hz (PRECISION))
Ambient temperature during operation-25 … +60 °C
Protection typeIP 67
ConnectionCable, 2.0 m, 4-pin (flying leads)
