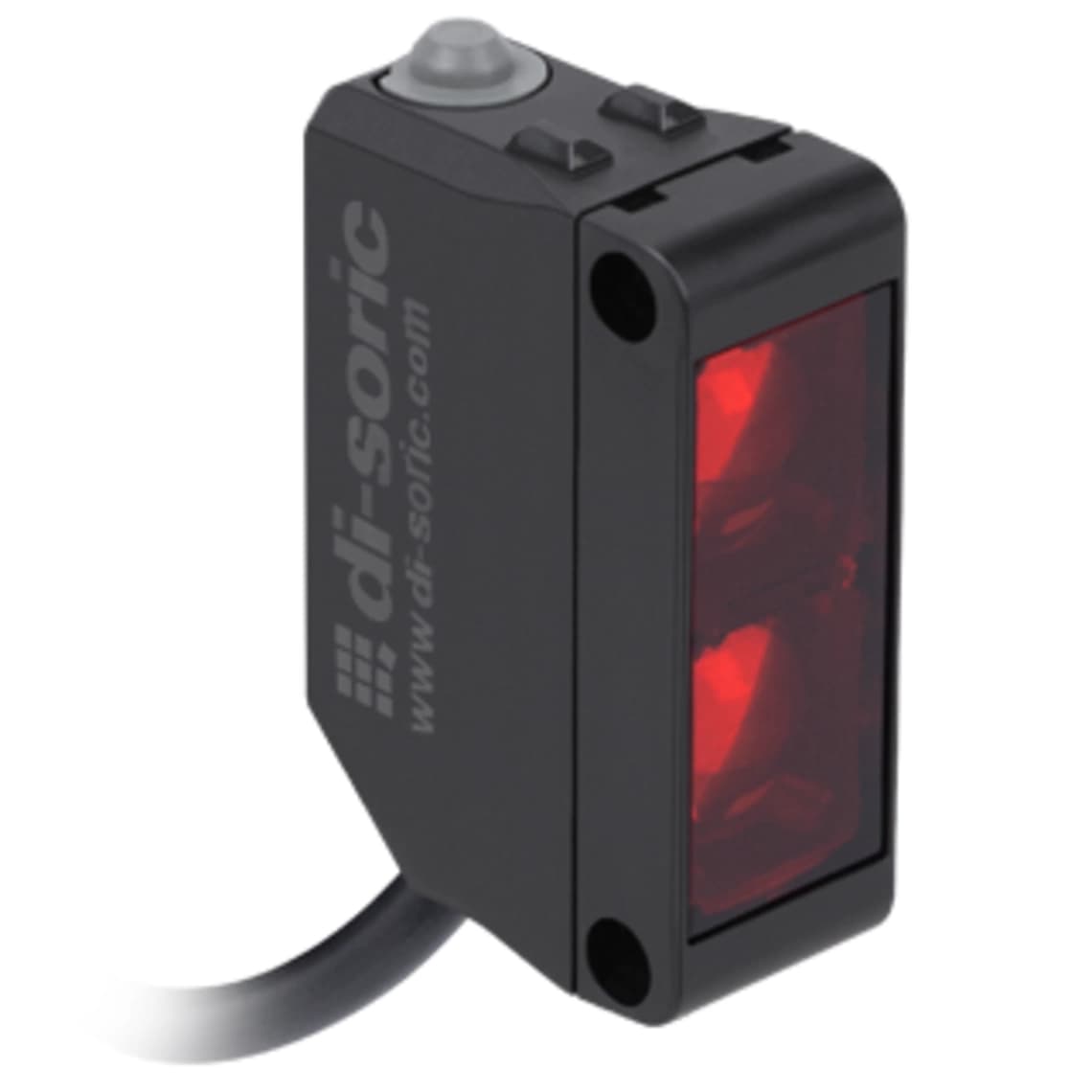

OH33-LRMS-TI-G3-2C O-33 Universal Optical sensors

Di-soric Optical sensors Industrial Automation - OH33-LRMS-TI-G3-2C O-33 Universal Optical sensors
Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about OH33-LRMS-TI-G3-2C O-33 Universal Optical sensors

Description

OH33-LRMS-TI-G3-2C
Article Number: 214895

The compact O-33 series photoelectric sensors and light barriers, housed in robust plastic casings with IO-Link interfaces, reliably and precisely solve even the most demanding detection tasks.

The sensors feature an IO-Link interface and are optionally equipped with powerful laser or LED light sources, enabling a long range and high operational reserves.

Compact design
Small detection angle
Ideal background suppression
Laser red light with small light spot
DD mode - simultaneous evaluation of intensity and distance
Push-pull output with pnp or npn function
Switch for light/dark switching
IO-Link
Measuring function
Sensing range and window function can be parameterized in mm

Collapse all
Service voltage10 … 30 V DC
No-load current (max.)< 30 mA
Inverse polarity protectionYes
Short-circuit protectionYes
Housing dimensions31 x 20 x 11 mm
Housing length20 mm
Housing height31 mm
Housing width11 mm
Housing materialPlastic
Material of cablePVC
MaterialPlastic (Window / optics)
Weight50 g
Protection classIII
ApprovalsUL
Operating principleDiffuse sensor with background suppression
Evaluationdigital
DesignCuboid design
WerkseinstellungSwitching frequency (350 Hz (PRECISION))
Switching outputPush-pull, 100 mA, NO/NC, switchable
Voltage drop (max.)1 V
InterfaceIO-Link (V1.1, COM2 38.4 kBd, Smart Sensor Profile)
Light sourceLaser
Laser classCLASS 1 LASER PRODUCT, (IEC 60825-1:2014 / EN 60825-1:2014)
ColorRed
Wavelength650 nm
Background suppressionYes
Light spot sizeØ 1 mm (at distance of 300 mm)
Range20 … 100 mm
Standardized measuring plate200 x 200 mm (white)
Sensitivity adjustmentButton, IO-Link
DisplayLED green - Status, yellow - Switching output 1
Switching frequency350 Hz … 800 Hz (350 Hz (HIGH FUNCTIONAL RELIABILITY), 800 Hz (SPEED))
Ambient temperature during operation-25 … +50 °C
Protection typeIP 67
ConnectionCable, 2.0 m, 4-pin (flying leads)
