OH21-50PS-0.3T3 O-21 Miniature Optical sensors

Di-soric Optical sensors Industrial Automation - OH21-50PS-0.3T3 O-21 Miniature Optical sensors

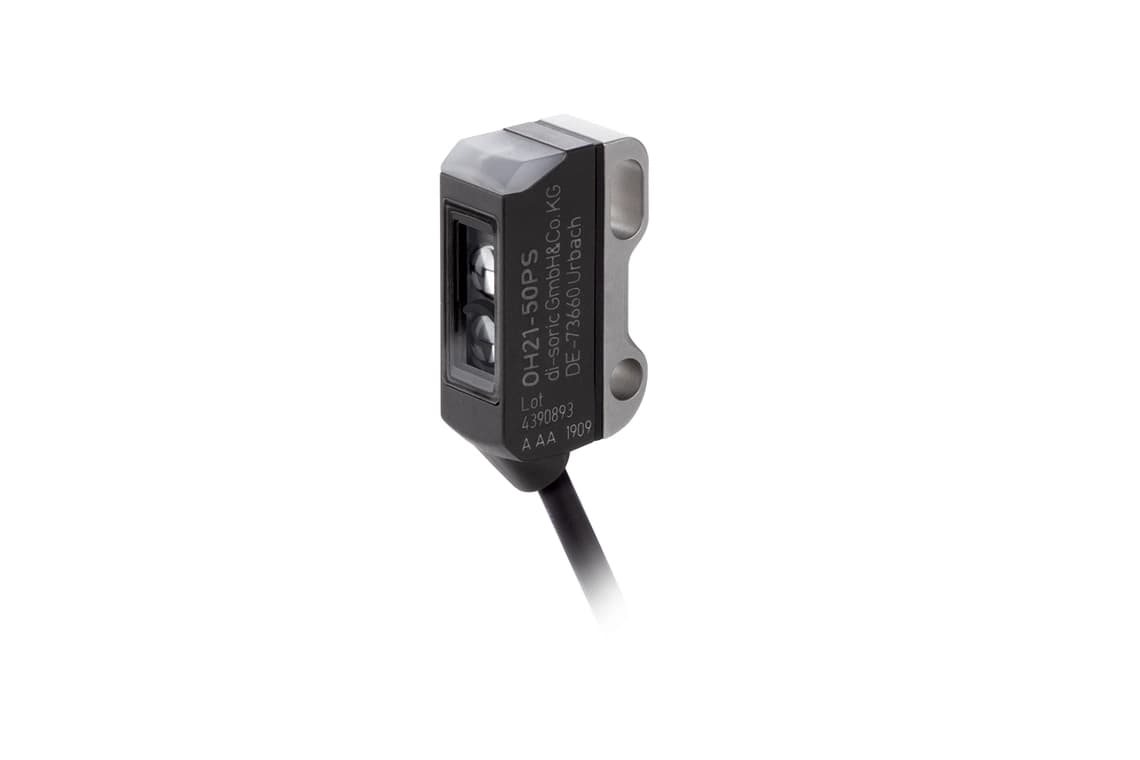

OH21-50PS-0.3T3 O-21 Miniature Optical sensors

Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about OH21-50PS-0.3T3 O-21 Miniature Optical sensors

Description

Collapse all
Service voltage10 … 30 V DC
No-load current (max.)20 mA
Inverse polarity protectionYes
Housing dimensions28.1 x 14.4 x 8.1 mm
Housing length14.4 mm
Housing height28.1 mm
Housing width8.1 mm
Housing materialStainless steel / Plastic
Material of cablePVC
MaterialPlastic (Window / optics)
Weight21 g
Protection classIII, operation on protective low voltage
ApprovalsUL
Operating principleDiffuse sensor with background suppression
Evaluationdigital
DesignCuboid design
Switching outputpnp, 100 mA, NO/NC, configurable
Voltage drop (max.)2.5 V
InterfaceIO-Link (V1.1, COM2 38.4 kBd, Smart Sensor Profile)
Light sourceLED (Clocked)
ColorRed
Wavelength633 nm
Background suppressionYes
Light spot sizeØ 4.0 mm (at distance of 80 mm)
Range1 … 50 mm (Factory setting, adjustable maximum 80 mm)
Adjustment range sensing distance10 … 80 mm
Standardized measuring plate200 x 200 mm (white)
Sensitivity adjustmentIO-Link
Switching frequency1000 Hz
Ambient temperature during operation-25 … +60 °C
Protection typeIP 65 / IP 67
ConnectionPigtail, 0.3 m, M8, 3-pin
Connection cableTK …
