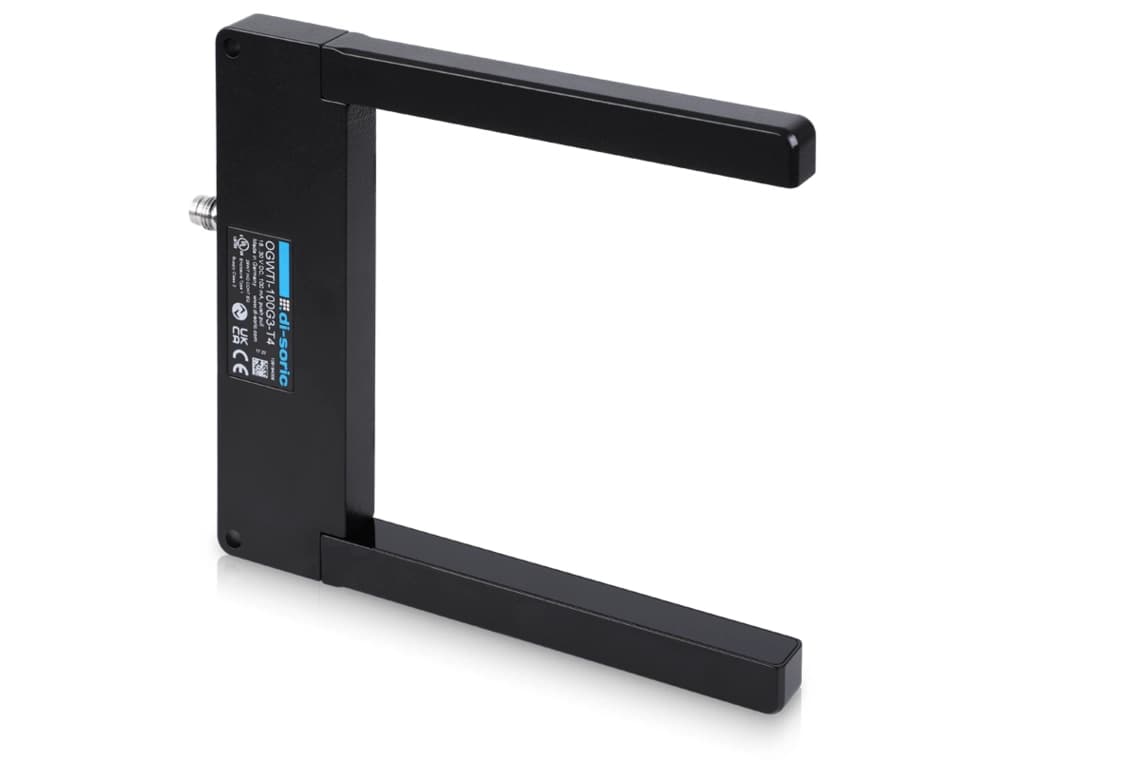

OGWTI-100G3-T4 100 x 100 mm Optical sensors

Di-soric Optical sensors Industrial Automation - OGWTI-100G3-T4 100 x 100 mm Optical sensors

OGWTI-100G3-T4 100 x 100 mm Optical sensors

Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about OGWTI-100G3-T4 100 x 100 mm Optical sensors

Description

Collapse all
Service voltage18 … 30 V DC
No-load current (max.)< 45 mA
Inverse polarity protectionYes
Short-circuit protectionYes
Housing dimensions136 x 124 x 12 mm
Housing length136 mm
Housing height12 mm
Housing width124 mm
Housing materialDie-cast zinc (Black, powder-coated)
MaterialPlastic (Window)
Weight224 g
ApprovalsUL
Operating principleOptical
EvaluationSwitching, Dynamic/static switchable
DesignFork
Operating modesStatic, Dynamic, Shadowing
Switching outputPush-pull, 100 mA, NO/NC, switchable
Voltage drop (max.)2 V
InterfaceIO-Link V1.1.3, COM2 (Smart Sensor Profile) 2nd Edition V1.1 SSP 4.1.1
Pulse stretching20 ms adjustable
Light sourceLED
ColorInfrared
Detection range100 x 100 mm
ResolutionØ 2.5 mm (dynamic), Ø 3.0 mm (static)
Sensitivity adjustmentKeypad
DisplayLED green - Status, yellow - Switching output 1, white - static/dynamic, yellow/red - Switching output 2 / Warning
Response time0.05 ms
Release time0.05 … 10000 ms
Ambient temperature during operation-10 … +60 °C
Protection typeIP 67
ConnectionConnector, M8, 4-pin
Connection cableTK … /4
