Get more information about OGWSD-250G3-T3 250 x 242 mm Optical sensors

Description

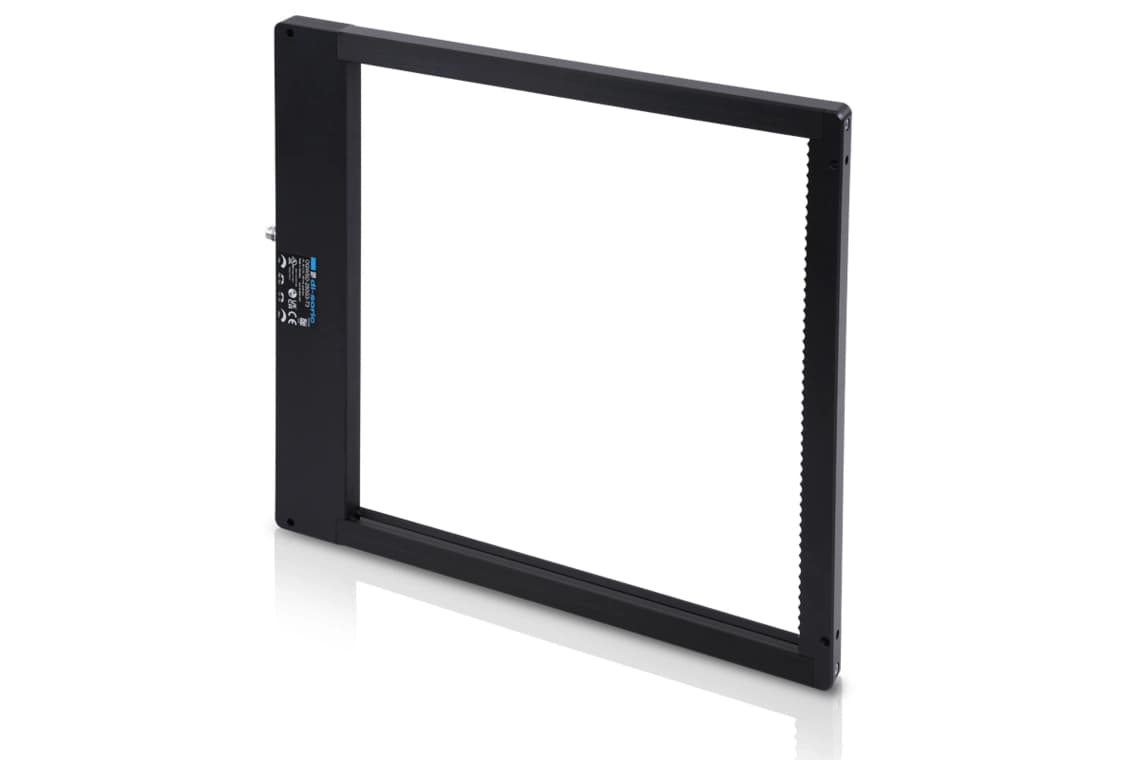

Frame light barriers OGWSD

OGWSD-250G3-T3
Article Number: 213351

Frame light barriers of the OGWSD series have a frame design and detect objects in a range of up to 300 x 397 mm. The devices are ideal for harsh machine environments with heavy mechanical stresses. The OGWSD has a robust metal housing with impact protection and crossbar and can quickly be set via potentiometers. IO-Link offers advantages in configuration and diagnosis.
IO-Link
Frame structure
Robust metal housing
Baffle protection at the optics
Cross bar, removable
High resolution
Short response time
Potentiometer for adjustment
Operating principle: dynamic or static
4 operating modes as an IO-Link parameter

Collapse all
Service voltage18 … 30 V DC
No-load current (max.)45 mA
Inverse polarity protectionYes
Short-circuit protectionYes
Housing dimensions301.5 x 280 x 15 mm
Housing length301.5 mm
Housing height15 mm
Housing width280 mm
Housing materialAluminum (Black, Anodized)
MaterialPlastic (Window)
Weight726 g
Protection classIII, operation on protective low voltage
ApprovalsUL
Operating principleOptical
EvaluationSwitching, Dynamic/static switchable
Operating modesStatic, Dynamic, Shadowing
Switching outputPush-pull, 100 mA, NO/NC, switchable
Voltage drop (max.)2 V
InterfaceIO-Link V1.1.3, COM2 (Smart Sensor Profile) 2nd Edition V1.1 SSP 4.1.1
Pulse stretching0 … 150 ms adjustable
Light sourceLED
ColorInfrared
Detection range250 x 242 mm
ResolutionØ 8.0 mm (static), Ø 5.0 mm (dynamic)
Sensitivity adjustmentPotentiometer
DisplayLED yellow - Switching output
Response time0.05 ms
Release time0.05 … 10000 ms
Ambient temperature during operation-10 … +60 °C
Protection typeIP 67
ConnectionConnector, M8, 3-pin
Connection cableTK …
