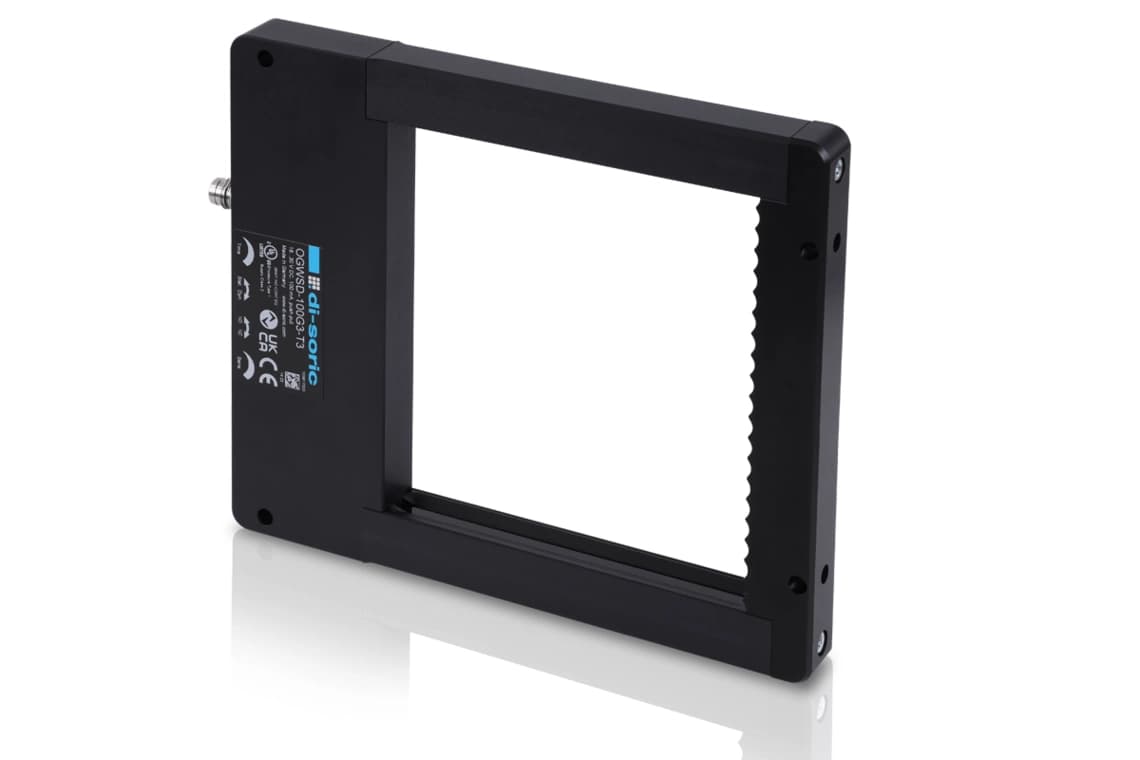

OGWSD-100G3-T3 100 x 92 mm Optical sensors

Di-soric Optical sensors Industrial Automation - OGWSD-100G3-T3 100 x 92 mm Optical sensors

OGWSD-100G3-T3 100 x 92 mm Optical sensors

Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about OGWSD-100G3-T3 100 x 92 mm Optical sensors

Description

Collapse all
Service voltage18 … 30 V DC
No-load current (max.)45 mA
Inverse polarity protectionYes
Short-circuit protectionYes
Housing dimensions151.5 x 130 x 15 mm
Housing length151.5 mm
Housing height15 mm
Housing width130 mm
Housing materialAluminum (Black, Anodized)
MaterialPlastic (Window)
Weight300 g
Protection classIII, operation on protective low voltage
ApprovalsUL
Operating principleOptical
EvaluationSwitching, Dynamic/static switchable
Operating modesStatic, Dynamic, Shadowing
Switching outputPush-pull, 100 mA, NO/NC, switchable
Voltage drop (max.)2 V
InterfaceIO-Link V1.1.3, COM2 (Smart Sensor Profile) 2nd Edition V1.1 SSP 4.1.1
Pulse stretching0 … 150 ms adjustable
Light sourceLED
ColorInfrared
Detection range100 x 92 mm
ResolutionØ 3.0 mm (static), Ø 2.5 mm (dynamic)
Sensitivity adjustmentPotentiometer
DisplayLED yellow - Switching output
Response time0.05 ms
Release time0.05 … 10000 ms
Ambient temperature during operation-10 … +60 °C
Protection typeIP 67
ConnectionConnector, M8, 3-pin
Connection cableTK …
