OGUTI 005/50 G3K-TSSL OGUTI Optical Optical sensors

Di-soric Optical sensors Industrial Automation - OGUTI 005/50 G3K-TSSL OGUTI Optical Optical sensors

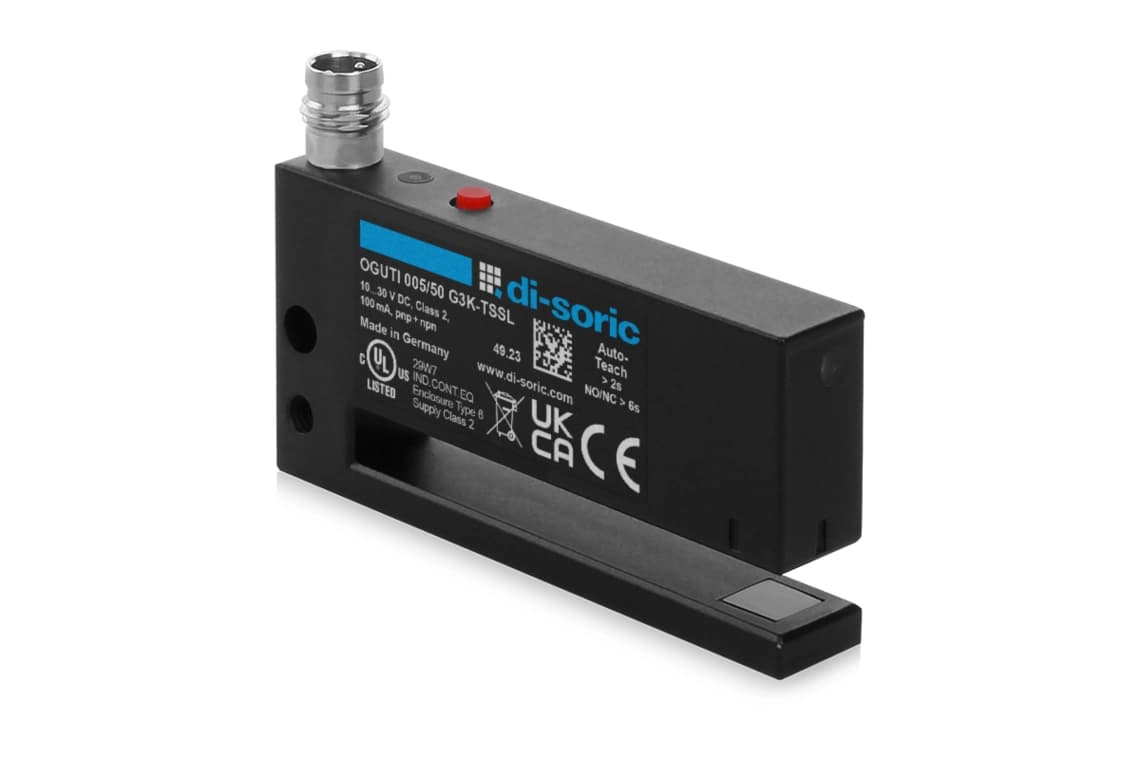

OGUTI 005/50 G3K-TSSL OGUTI Optical Optical sensors

Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about OGUTI 005/50 G3K-TSSL OGUTI Optical Optical sensors

Description

Collapse all
Service voltage10 … 30 V DC (Supply Class 2)
No-load current (max.)35 mA
Insulation voltage endurance500 V
Fork opening5 mm
Leg length internal50 mm
Housing dimensions60 x 28.5 x 10 mm
Housing length60 mm
Housing height28.5 mm
Housing width10 mm
Housing materialDie-cast zinc (Black, painted)
Protection classIII, operation on protective low voltage
ApprovalsUL
Operating principleOptical
Evaluationdigital
DesignFork
Product seriesOGUTI Optical
Switching outputPush-pull, 100 mA, NO/NC, switchable
Voltage drop (max.)2 V
Light sourceLED
ColorInfrared
Wavelength880 nm
ModulationClocked
Ambient light immunity40 kLx
Switching hysteresis (max.)0.15 mm
Reproducibility< 0.05 mm
Sensitivity adjustmentTeach button
Switching frequency3000 Hz
Ambient temperature during operation-10 … +60 °C
Protection typeIP 67
ConnectionConnector, M8, 3-pin
Connection cableTK …
