OGUP 020 G3-T3 OGUP Dirt-resistant Optical sensors

Di-soric Optical sensors Industrial Automation - OGUP 020 G3-T3 OGUP Dirt-resistant Optical sensors

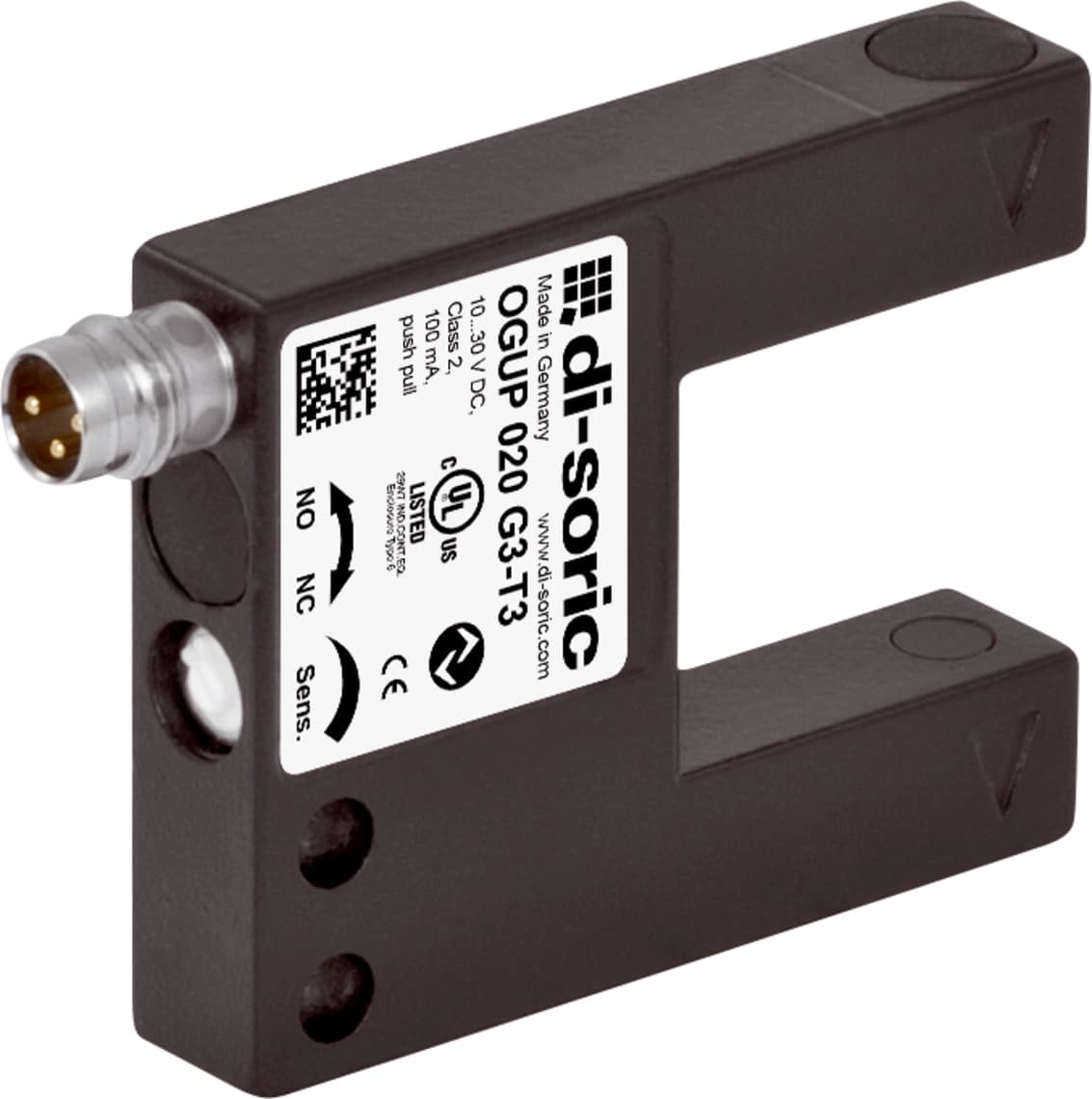

OGUP 020 G3-T3 OGUP Dirt-resistant Optical sensors

Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about OGUP 020 G3-T3 OGUP Dirt-resistant Optical sensors

Description

Collapse all
Service voltage10 … 30 V DC (Supply Class 2)
No-load current (max.)30 mA
Insulation voltage endurance500 V
Fork opening20 mm
Leg length internal25 mm
Housing dimensions40 x 50 x 10 mm
Housing length50 mm
Housing height40 mm
Housing width10 mm
Housing materialDie-cast zinc (Black, powder-coated)
Protection classIII, operation on protective low voltage
ApprovalsUL
Operating principleOptical
Evaluationdigital
DesignFork
CharacteristicsHigh transmit power and dirt penetration
Switching outputPush-pull, 100 mA, NO/NC, switchable
Voltage drop (max.)1 V
InterfaceIO-Link
Light sourceLED
ColorInfrared
ModulationClocked
Resolution (factory setting)2 mm (POWER)
Reproducibility (factory setting)0.03 mm (POWER)
Resolution (STANDARD)0.3 mm
Reproducibility (STANDARD)0.02 mm
Resolution (HIGH RESOLUTION)0.2 mm
Reproducibility (HIGH RESOLUTION)0.02 mm
Resolution (POWER)2 mm
Reproducibility (POWER)0.03 mm
Resolution (SPEED)0.3 mm
Reproducibility (SPEED)0.02 mm
Switching hysteresis (max.)0.03 mm
Reproducibility0.2 mm
Sensitivity adjustmentPotentiometer or IO-Link
Switching frequency (factory setting)200 Hz (POWER)
Switching frequency (STANDARD)5000 Hz
Switching frequency (HIGH RESOLUTION)1500 Hz
Switching frequency (POWER)200 Hz
Switching frequency (SPEED)8000 Hz
Ambient temperature during operation-25 … +60 °C
Protection typeIP 67
ConnectionConnector, M8, 3-pin
Connection cableTK …
