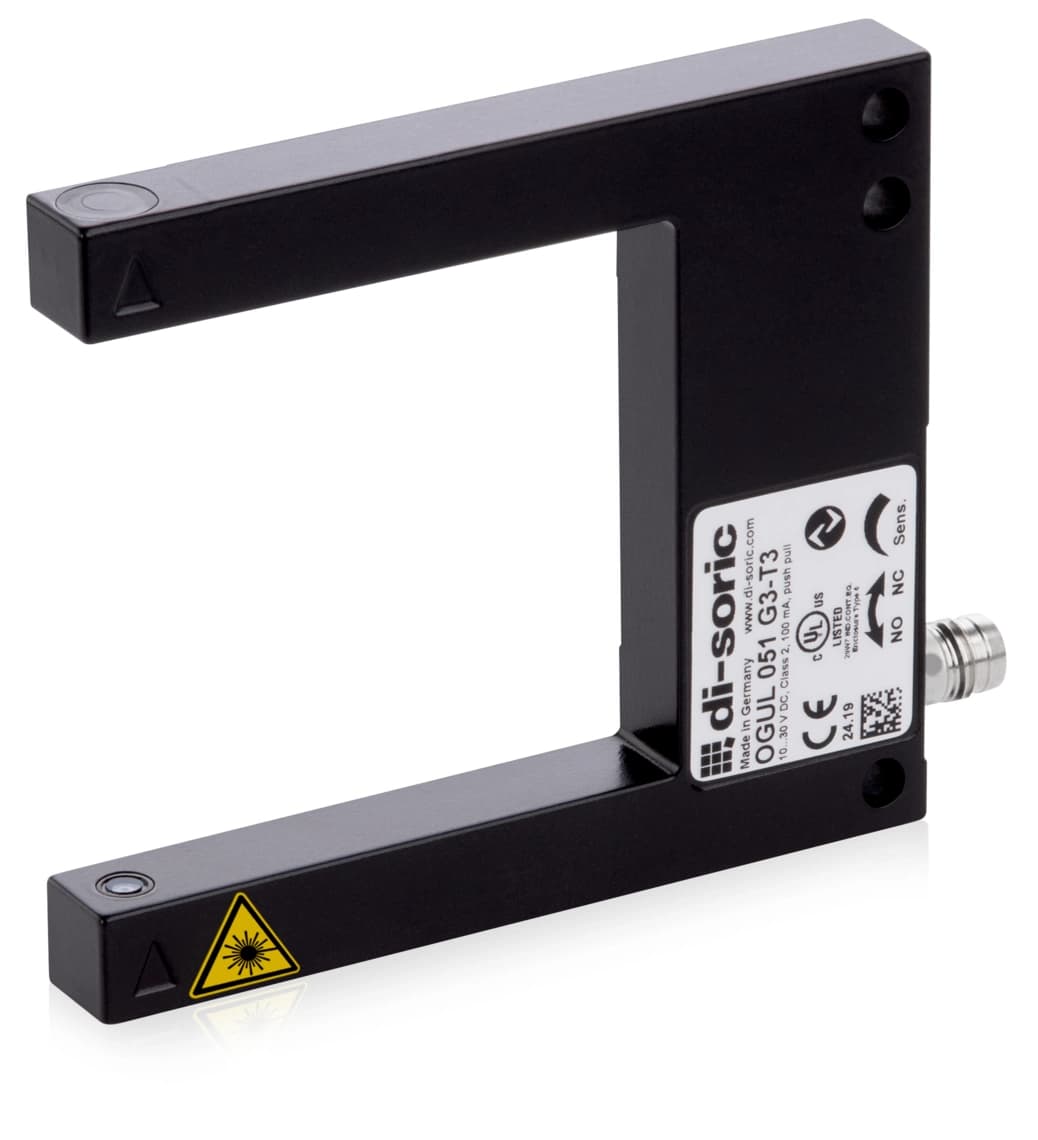

OGUL 051 G3-T3 OGUL Laser Optical sensors

Di-soric Optical sensors Industrial Automation - OGUL 051 G3-T3 OGUL Laser Optical sensors

OGUL 051 G3-T3 OGUL Laser Optical sensors

Di-soric logo

Manufactured by

Di-soric

Authorized Partner

View Products

Inquiry Form

Get more information about OGUL 051 G3-T3 OGUL Laser Optical sensors

Description

Collapse all
Service voltage10 … 30 V DC
No-load current (max.)30 mA
Insulation voltage endurance500 V
Fork opening50 mm
Leg length internal55 mm
Housing dimensions70 x 80 x 10 mm
Housing length80 mm
Housing height70 mm
Housing width10 mm
Housing materialDie-cast zinc (Black, powder-coated)
Weight96 g
Protection classIII, operation on protective low voltage
ApprovalsUL
Operating principleOptical
Evaluationdigital
DesignFork
Operation modesSTANDARD, HIGH RESOLUTION, POWER, SPEED
Switching outputPush-pull, 100 mA, NO/NC, switchable
Voltage drop (max.)1 V
InterfaceIO-Link (V1.1, COM2 (38.4 kBd) Smart Sensor Profile)
Light sourceLaser
Laser classCLASS 1 LASER PRODUCT, (IEC 60825-1:2014 / EN 60825-1:2014)
ColorRed
Wavelength655 nm (Pp < 0.3 mW t = 3.4 µs)
ModulationClocked
Resolution (factory setting)0.05 mm (STANDARD)
Reproducibility (factory setting)0.01 mm (STANDARD)
Resolution (STANDARD)0.05 mm
Reproducibility (STANDARD)0.01 mm
Resolution (HIGH RESOLUTION)0.03 mm
Reproducibility (HIGH RESOLUTION)0.01 mm
Resolution (POWER)0.1 mm
Reproducibility (POWER)0.015 mm
Resolution (SPEED)0.05 mm
Reproducibility (SPEED)0.015 mm
Sensitivity adjustmentPotentiometer or IO-Link
Switching frequency (factory setting)5000 Hz (STANDARD)
Switching frequency (STANDARD)5000 Hz
Switching frequency (HIGH RESOLUTION)2000 Hz
Switching frequency (POWER)1000 Hz
Switching frequency (SPEED)10000 Hz
Ambient temperature during operation-25 … +60 °C
Protection typeIP 67
ConnectionConnector, M8, 3-pin
Connection cableTK …
