Get more information about OGUL 021 G3-T3 OGUL Laser Optical sensors

Description

Fork light barriers OGUL LaserFork light barriers OGUL LaserFork light barriers OGUL LaserFork light barriers OGUL Laser
Fork light barriers OGUL LaserFork light barriers OGUL LaserFork light barriers OGUL LaserFork light barriers OGUL Laser

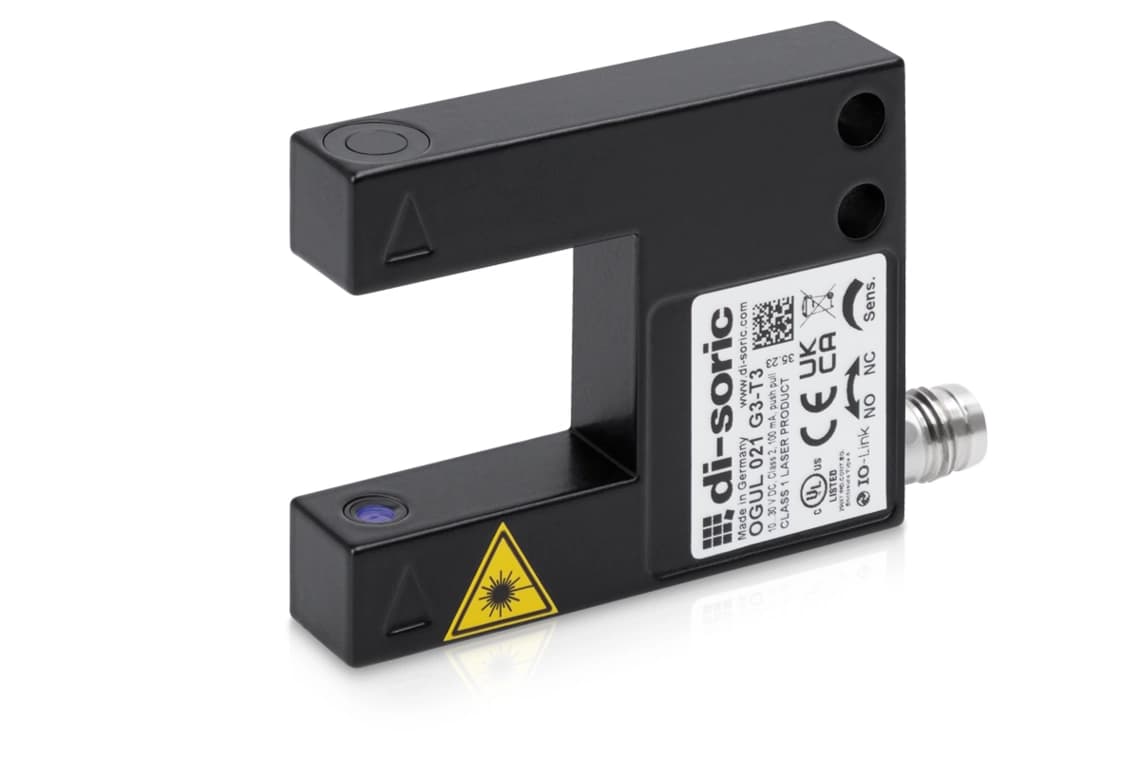

OGUL laser fork light barrier

OGUL 021 G3-T3
Article Number: 214350

The OGUL series is particularly suited for the detection of small parts from 0.05 mm. Through the use of collimated laser red light, a high degree of precision of the switching point between transmitter and receiver across the entire fork width is achieved. The devices work with a clocked red light laser in the eye-safe laser class 1. The easily visible, small laser point makes quick adjustment to the object possible even with a large

Light/dark switching
IO-Link
4 operating modes as an IO-Link parameter
Diagnostics with IO-Link
Metal casing
Electronics integrated
Sensitivity is adjustable
High switching frequency
Bright ring LED
High protection type

Collapse all
Service voltage10 … 30 V DC
No-load current (max.)30 mA
Insulation voltage endurance500 V
Fork opening20 mm
Leg length internal25 mm
Housing dimensions40 x 50 x 10 mm
Housing length50 mm
Housing height40 mm
Housing width10 mm
Housing materialDie-cast zinc (Black, powder-coated)
Weight48 g
Protection classIII, operation on protective low voltage
ApprovalsUL
Operating principleOptical
Evaluationdigital
DesignFork
Operation modesSTANDARD, HIGH RESOLUTION, POWER, SPEED
Switching outputPush-pull, 100 mA, NO/NC, switchable
Voltage drop (max.)1 V
InterfaceIO-Link (V1.1, COM2 (38.4 kBd) Smart Sensor Profile)
Light sourceLaser
Laser classCLASS 1 LASER PRODUCT, (IEC 60825-1:2014 / EN 60825-1:2014)
ColorRed
Wavelength655 nm (Pp < 0.3 mW t = 3.4 µs)
ModulationClocked
Resolution (factory setting)0.05 mm (STANDARD)
Reproducibility (factory setting)0.01 mm (STANDARD)
Resolution (STANDARD)0.05 mm
Reproducibility (STANDARD)0.01 mm
Resolution (HIGH RESOLUTION)0.03 mm
Reproducibility (HIGH RESOLUTION)0.01 mm
Resolution (POWER)0.1 mm
Reproducibility (POWER)0.015 mm
Resolution (SPEED)0.05 mm
Reproducibility (SPEED)0.015 mm
Sensitivity adjustmentPotentiometer or IO-Link
Switching frequency (factory setting)5000 Hz (STANDARD)
Switching frequency (STANDARD)5000 Hz
Switching frequency (HIGH RESOLUTION)2000 Hz
Switching frequency (POWER)1000 Hz
Switching frequency (SPEED)10000 Hz
Ambient temperature during operation-25 … +60 °C
Protection typeIP 67
ConnectionConnector, M8, 3-pin
Connection cableTK …
